Produkt

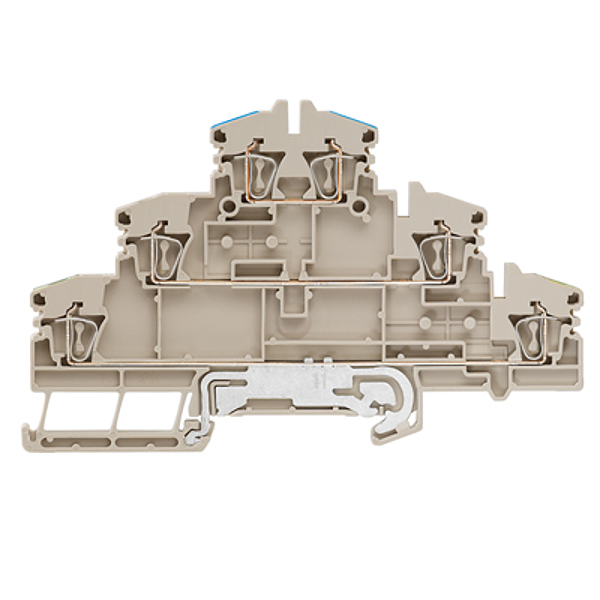

Article image 1131760000
Manufacturer logo

Weidmueller

1131760000

ZDLD 2.5-2N/PE/L/N

Poproś o ofertę
Zamknij
Poproś o ofertę
Article image 1131760000
Prawa autorskie do obrazu: Weidmueller

Weidmueller 1131760000

ZDLD 2.5-2N/PE/L/N

Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"

Opis

Parametry techniczne

Type: ZDLD 2.5-2N/PE/L/N
Order No.: 1131760000
Version: Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
GTIN (EAN): 4032248922697
Qty.: 50 pc(s).
Width: 5.1 mm
Width (inches): 0.201 inch
Height: 110.5 mm
Height (inches): 4.35 inch
Depth: 69 mm
Depth (inches): 2.717 inch
Depth including DIN rail: 70 mm
Net weight: 21 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Version: Tension-clamp connection, N, L and PE connection, for plug-in cross-connector, One end without connector
End cover plate required: Yes
Number of levels: 3
Number of clamping points per level: 2
Levels cross-connected internally: No
PE connection: Yes
Rail: TS 35
Installation advice: Direct mounting
Open sides: right
Type of mounting: Snap-on
Certificate No. (CSA): 200039-1228250
Current size B (CSA): 15 A
Current size C (CSA): 15 A
Current size D (CSA): 10 A
Voltage size B (CSA): 300 V
Voltage size C (CSA): 150 V
Voltage size D (CSA): 300 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 26 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 2.5 mm²
Clamping range, min.: 0.08 mm²
Connection direction: top
Gauge to IEC 60947-1: A2
Number of connections: 6
Stripping length: 10 mm
Type of connection: Tension-clamp connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 26
Wire connection cross section, finely stranded, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 2.5 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Rated cross-section: 2.5 mm²
Rated voltage: 500 V
Rated current: 20 A
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Power loss in accordance with IEC 60947-7-x: 0.77 W
Rated impulse withstand voltage: 6 kV
Pollution severity: 3
Certificate No. (UR): E60693
Conductor size Factory wiring max. (UR): 12 AWG
Conductor size Factory wiring min. (UR): 26 AWG
Conductor size Field wiring max. (UR): 12 AWG
Conductor size Field wiring min. (UR): 26 AWG
Current size B (UR): 15 A
Current size C (UR): 15 A
Current size D (UR): 10 A
Voltage size B (UR): 300 V
Voltage size C (UR): 150 V
Voltage size D (UR): 300 V
Wire cross section max. (UR): 12 AWG
Wire cross section min. (UR): 26 AWG
ETIM 6.0: EC000897
ETIM 7.0: EC000897
eClass 9.0: 27-14-11-20
eClass 9.1: 27-14-11-20
eClass 10.0: 27-14-11-20
ROHS: Conform
Type: ZDLD 2.5-2N/PE/L/N
Order No.: 1131760000
Version: Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
GTIN (EAN): 4032248922697
Qty.: 50 pc(s).
Width: 5.1 mm
Width (inches): 0.201 inch
Height: 110.5 mm
Height (inches): 4.35 inch
Depth: 69 mm
Depth (inches): 2.717 inch
Depth including DIN rail: 70 mm
Net weight: 21 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 120 °C
Material: Wemid
Colour: dark beige
UL 94 flammability rating: V-0
Version: Tension-clamp connection, N, L and PE connection, for plug-in cross-connector, One end without connector
End cover plate required: Yes
Number of levels: 3
Number of clamping points per level: 2
Levels cross-connected internally: No
PE connection: Yes
Rail: TS 35
Installation advice: Direct mounting
Open sides: right
Type of mounting: Snap-on
Certificate No. (CSA): 200039-1228250
Current size B (CSA): 15 A
Current size C (CSA): 15 A
Current size D (CSA): 10 A
Voltage size B (CSA): 300 V
Voltage size C (CSA): 150 V
Voltage size D (CSA): 300 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 26 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 2.5 mm²
Clamping range, min.: 0.08 mm²
Connection direction: top
Gauge to IEC 60947-1: A2
Number of connections: 6
Stripping length: 10 mm
Type of connection: Tension-clamp connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 26
Wire connection cross section, finely stranded, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 2.5 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Rated cross-section: 2.5 mm²
Rated voltage: 500 V
Rated current: 20 A
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Power loss in accordance with IEC 60947-7-x: 0.77 W
Rated impulse withstand voltage: 6 kV
Pollution severity: 3
Certificate No. (UR): E60693
Conductor size Factory wiring max. (UR): 12 AWG
Conductor size Factory wiring min. (UR): 26 AWG
Conductor size Field wiring max. (UR): 12 AWG
Conductor size Field wiring min. (UR): 26 AWG
Current size B (UR): 15 A
Current size C (UR): 15 A
Current size D (UR): 10 A
Voltage size B (UR): 300 V
Voltage size C (UR): 150 V
Voltage size D (UR): 300 V
Wire cross section max. (UR): 12 AWG
Wire cross section min. (UR): 26 AWG
ETIM 6.0: EC000897
ETIM 7.0: EC000897
eClass 9.0: 27-14-11-20
eClass 9.1: 27-14-11-20
eClass 10.0: 27-14-11-20
ROHS: Conform

Parametry logistyczne

ECCN:
Kraj pochodzenia:
EAN:
Waga: 0,022 kg
Długość: 0,00 m
Szerokość: 0,00 m
Wysokość: 0,00 m
