Weidmueller
1127710000
TOZ 24-230VUC 230VAC1A
Poproś o ofertę

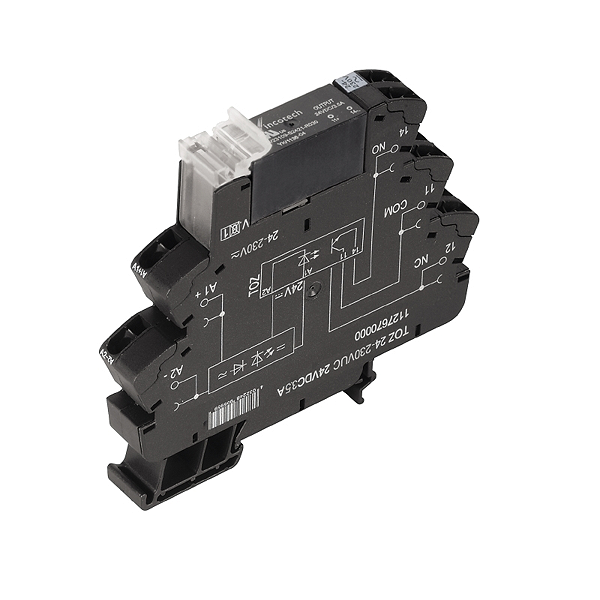

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1127710000
TOZ 24-230VUC 230VAC1A
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | TOZ 24-230VUC 230VAC1A |
| Order No.: | 1127710000 |
| Version: | TERMSERIES, solid-state relais, 1 NO contact (Triac (zero-cross switch)), Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 12...275 V AC, Continuous current: 1 A, Tension-clamp connection |
| GTIN (EAN): | 4032248909384 |
| Qty.: | 10 pc(s). |
| Width: | 12.8 mm |
| Width (inches): | 0.504 inch |
| Height: | 90.5 mm |
| Height (inches): | 3.563 inch |
| Depth: | 87.8 mm |
| Depth (inches): | 3.457 inch |
| Net weight: | 56.1 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -20 °C...40 °C |
| Storage temperature: | -40 °C...70 °C |
| MTTF: | 797 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Ambient temperature (operational), max.: | 40 °C |
| Rated control voltage: | 24…230 V UC ±10 % |
| Nominal control current: | 28 mA @ 24 V UC, 4 mA @ 230 V UC |
| Power rating: | 672 mW @ 24 V UC, 920 mW @ 230 V UC |
| Status indicator: | Green LED |
| Protective circuit: | Rectifier |
| Coil voltage of the replacement relay deviating from the rated control voltage: | Yes |
| Coil voltage of the replacement relay: | 24 V DC |
| Rated switching voltage: | 12...275 V AC |
| Continuous current: | 1 A |
| Inrush current: | 15 A / 10 ms |
| Switch-on delay: | ≤ 12 ms |
| Switch-off delay: | < 125 ms |
| Voltage drop at max. load: | ≤ 1.1 V |
| Leakage current: | < 1.5 mA |
| Min. switching current: | 50 mA |
| Short-circuit-proof: | No |
| Protective circuit, load side: | RC element |
| Output voltage frequency range: | 50 / 60 Hz |
| max. switching frequency (AC control voltage): | 3 Hz |
| max. switching frequency (DC control voltage): | 3 Hz |
| Contact type: | 1 NO contact (Triac (zero-cross switch)) |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | ≥ 5.5 mm |
| Impulse withstand voltage: | 6 kV (1.2/50 µs) |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178 |
| Certificate No. (DNVGL): | TAA00001E5 |
| Wire connection method: | Tension-clamp connection |
| Stripping length, rated connection: | 8 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.14 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.14 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire cross-section, finely stranded, min. (AWG): | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG): | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Twin wire-end ferrules, max.: | 1 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Gauge to IEC 60947-1: | A1, B1 |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| ROHS: | Conform |
| Type: | TOZ 24-230VUC 230VAC1A |
| Order No.: | 1127710000 |
| Version: | TERMSERIES, solid-state relais, 1 NO contact (Triac (zero-cross switch)), Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 12...275 V AC, Continuous current: 1 A, Tension-clamp connection |
| GTIN (EAN): | 4032248909384 |
| Qty.: | 10 pc(s). |
| Width: | 12.8 mm |
| Width (inches): | 0.504 inch |
| Height: | 90.5 mm |
| Height (inches): | 3.563 inch |
| Depth: | 87.8 mm |
| Depth (inches): | 3.457 inch |
| Net weight: | 56.1 g |
| Operating temperature, max.: | 40 °C |
| Operating temperature, min.: | -20 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -20 °C...40 °C |
| Storage temperature: | -40 °C...70 °C |
| MTTF: | 797 Years |
| REACH SVHC: | Lead 7439-92-1 |
| Ambient temperature (operational), max.: | 40 °C |
| Rated control voltage: | 24…230 V UC ±10 % |
| Nominal control current: | 28 mA @ 24 V UC, 4 mA @ 230 V UC |
| Power rating: | 672 mW @ 24 V UC, 920 mW @ 230 V UC |
| Status indicator: | Green LED |
| Protective circuit: | Rectifier |
| Coil voltage of the replacement relay deviating from the rated control voltage: | Yes |
| Coil voltage of the replacement relay: | 24 V DC |
| Rated switching voltage: | 12...275 V AC |
| Continuous current: | 1 A |
| Inrush current: | 15 A / 10 ms |
| Switch-on delay: | ≤ 12 ms |
| Switch-off delay: | < 125 ms |
| Voltage drop at max. load: | ≤ 1.1 V |
| Leakage current: | < 1.5 mA |
| Min. switching current: | 50 mA |
| Short-circuit-proof: | No |
| Protective circuit, load side: | RC element |
| Output voltage frequency range: | 50 / 60 Hz |
| max. switching frequency (AC control voltage): | 3 Hz |
| max. switching frequency (DC control voltage): | 3 Hz |
| Contact type: | 1 NO contact (Triac (zero-cross switch)) |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 300 V |
| Pollution severity: | 2 |
| Surge voltage category: | III |
| Clearance and creepage distances for control side - load side: | ≥ 5.5 mm |
| Impulse withstand voltage: | 6 kV (1.2/50 µs) |
| Protection degree: | IP20 |
| Standards: | DIN EN 50178 |
| Certificate No. (DNVGL): | TAA00001E5 |
| Wire connection method: | Tension-clamp connection |
| Stripping length, rated connection: | 8 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.14 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.14 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire cross-section, finely stranded, min. (AWG): | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG): | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Twin wire-end ferrules, max.: | 1 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Gauge to IEC 60947-1: | A1, B1 |
| ETIM 6.0: | EC001504 |
| ETIM 7.0: | EC001504 |
| eClass 9.0: | 27-37-16-04 |
| eClass 9.1: | 27-37-16-04 |
| eClass 10.0: | 27-37-16-04 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,056 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
