Produkt
Weidmueller
1107790000
WP4/1AN/1
Poproś o ofertę

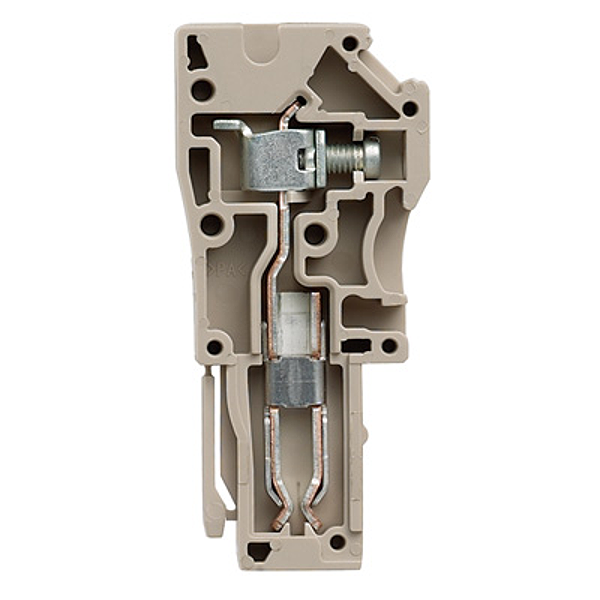

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1107790000
WP4/1AN/1
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WP4/1AN/1 |
| Order No.: | 1107790000 |
| Version: | W-Series, Plug-in connector |
| GTIN (EAN): | 4032248882915 |
| Qty.: | 50 pc(s). |
| Width: | 7.1 mm |
| Width (inches): | 0.28 inch |
| Height: | 22.4 mm |
| Height (inches): | 0.882 inch |
| Depth: | 48.6 mm |
| Depth (inches): | 1.913 inch |
| Net weight: | 7.26 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, Plug |
| End cover plate required: | No |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| PE connection: | No |
| Type of mounting: | Plugged |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A4 |
| Number of connections: | 1 |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 800 V |
| Rated current: | 32 A |
| Current at maximum wires: | 32 A |
| Standards: | IEC 60947-7-1, IEC 61984 |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 10 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 10 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size B (cURus): | 30 A |
| Current size C (cURus): | 30 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| Wire cross section max. (cURus): | 10 AWG |
| Wire cross section min. (cURus): | 26 AWG |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| ROHS: | Conform |
| Type: | WP4/1AN/1 |
| Order No.: | 1107790000 |
| Version: | W-Series, Plug-in connector |
| GTIN (EAN): | 4032248882915 |
| Qty.: | 50 pc(s). |
| Width: | 7.1 mm |
| Width (inches): | 0.28 inch |
| Height: | 22.4 mm |
| Height (inches): | 0.882 inch |
| Depth: | 48.6 mm |
| Depth (inches): | 1.913 inch |
| Net weight: | 7.26 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, Plug |
| End cover plate required: | No |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| PE connection: | No |
| Type of mounting: | Plugged |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | top |
| Gauge to IEC 60947-1: | A4 |
| Number of connections: | 1 |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 800 V |
| Rated current: | 32 A |
| Current at maximum wires: | 32 A |
| Standards: | IEC 60947-7-1, IEC 61984 |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 10 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 10 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size B (cURus): | 30 A |
| Current size C (cURus): | 30 A |
| Current size D (cURus): | 5 A |
| Voltage size B (cURus): | 600 V |
| Voltage size C (cURus): | 600 V |
| Voltage size D (cURus): | 600 V |
| Wire cross section max. (cURus): | 10 AWG |
| Wire cross section min. (cURus): | 26 AWG |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| ROHS: | Conform |
