Produkt
Weidmueller
1083240000
SFX 30/60 MC NE GE
Poproś o ofertę

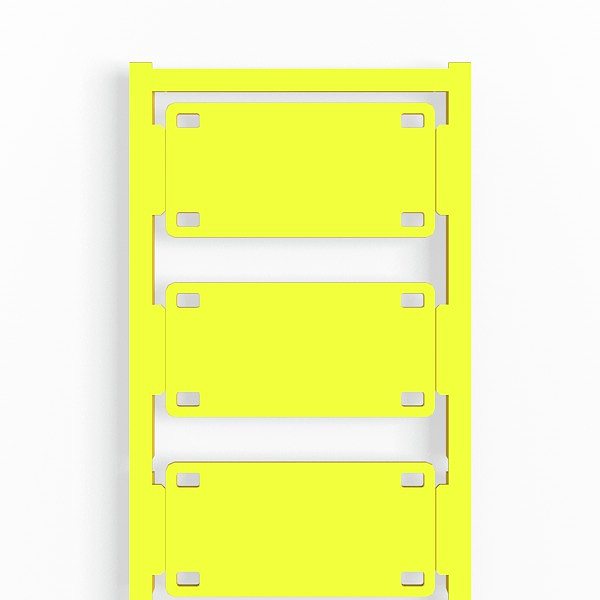

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1083240000
SFX 30/60 MC NE GE
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SFX 30/60 MC NE GE |
| Order No.: | 1083240000 |
| Version: | SlimFix X, Conductor and cable markers, 7 - 40 mm, 60 x 30 mm, yellow |
| GTIN (EAN): | 4032248846887 |
| Qty.: | 30 pc(s). |
| Width: | 30 mm |
| Width (inches): | 1.181 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 1.2 mm |
| Depth (inches): | 0.047 inch |
| Net weight: | 4.467 g |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyamide 66 |
| Material colour according to resistance code: | 4 |
| Operating temperature range: | -40...100 °C |
| Recommended industries: | Transportation, Machinery |
| Size of labelling field: | 45 x 30 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-2 |
| Version: | Installation with cable ties |
| Width: | 30 mm |
| Conductor O.D.: | 7 - 40 mm |
| Conductor O.D., max.: | 40 mm |
| Conductor O.D., min.: | 7 mm |
| Conductor cross-section, max.: | 500 mm² |
| Conductor cross-section, min.: | 16 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 39-12-14-00 |
| ROHS: | Conform |
| Type: | SFX 30/60 MC NE GE |
| Order No.: | 1083240000 |
| Version: | SlimFix X, Conductor and cable markers, 7 - 40 mm, 60 x 30 mm, yellow |
| GTIN (EAN): | 4032248846887 |
| Qty.: | 30 pc(s). |
| Width: | 30 mm |
| Width (inches): | 1.181 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 1.2 mm |
| Depth (inches): | 0.047 inch |
| Net weight: | 4.467 g |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyamide 66 |
| Material colour according to resistance code: | 4 |
| Operating temperature range: | -40...100 °C |
| Recommended industries: | Transportation, Machinery |
| Size of labelling field: | 45 x 30 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-2 |
| Version: | Installation with cable ties |
| Width: | 30 mm |
| Conductor O.D.: | 7 - 40 mm |
| Conductor O.D., max.: | 40 mm |
| Conductor O.D., min.: | 7 mm |
| Conductor cross-section, max.: | 500 mm² |
| Conductor cross-section, min.: | 16 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 39-12-14-00 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,004 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
