Produkt
Weidmueller
1082370000
ZSI 2.5/LD 60AC OR
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

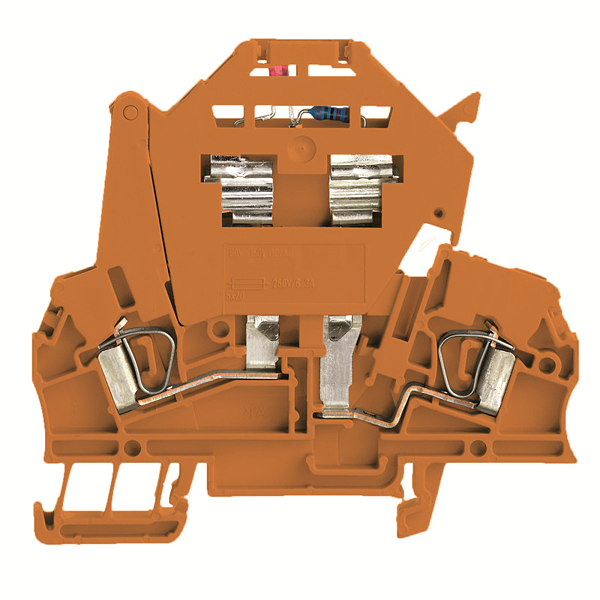

Weidmueller 1082370000
ZSI 2.5/LD 60AC OR
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | ZSI 2.5/LD 60AC OR |
| Order No.: | 1082370000 |
| Version: | Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection |
| GTIN (EAN): | 4032248881000 |
| Qty.: | 50 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 79.5 mm |
| Height (inches): | 3.13 inch |
| Depth: | 73 mm |
| Depth (inches): | 2.874 inch |
| Depth including DIN rail: | 74 mm |
| Net weight: | 21.28 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Fuse cartridge, with LED, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Number of connections: | 2 |
| Type of connection: | Tension-clamp connection |
| Cartridge fuse: | G-Si. 5 x 20 |
| Operating voltage, max.: | 60 V |
| Power loss for overload and short-circuit protection for a composite arrangement: | 1.6 W at 6.3 A @ 41°C |
| Power loss for overload and short-circuit protection for an individual arrangement: | 2.5 W at 2.5 A @ 27°C |
| Power loss for short-circuit protection only for a composite arrangement: | 2.5 W at 6.3 A @ 55°C |
| Power loss for short-circuit protection only for an individual arrangement: | 4.0 W at 6.3 A @ 52°C |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 60 V |
| Rated voltage to adjoining terminal: | 500 V |
| Rated current: | 6.3 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| ROHS: | Conform |
| Type: | ZSI 2.5/LD 60AC OR |
| Order No.: | 1082370000 |
| Version: | Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection |
| GTIN (EAN): | 4032248881000 |
| Qty.: | 50 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 79.5 mm |
| Height (inches): | 3.13 inch |
| Depth: | 73 mm |
| Depth (inches): | 2.874 inch |
| Depth including DIN rail: | 74 mm |
| Net weight: | 21.28 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | orange |
| UL 94 flammability rating: | V-0 |
| Version: | Tension-clamp connection, Fuse cartridge, with LED, for plug-in cross-connector, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Number of connections: | 2 |
| Type of connection: | Tension-clamp connection |
| Cartridge fuse: | G-Si. 5 x 20 |
| Operating voltage, max.: | 60 V |
| Power loss for overload and short-circuit protection for a composite arrangement: | 1.6 W at 6.3 A @ 41°C |
| Power loss for overload and short-circuit protection for an individual arrangement: | 2.5 W at 2.5 A @ 27°C |
| Power loss for short-circuit protection only for a composite arrangement: | 2.5 W at 6.3 A @ 55°C |
| Power loss for short-circuit protection only for an individual arrangement: | 4.0 W at 6.3 A @ 52°C |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 60 V |
| Rated voltage to adjoining terminal: | 500 V |
| Rated current: | 6.3 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,021 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
