Produkt
Weidmueller
1080200000
WSH 6
Poproś o ofertę

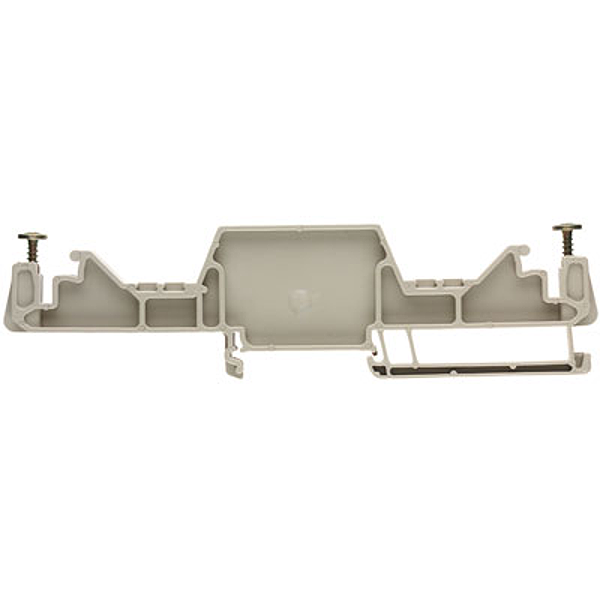

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1080200000
WSH 6
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WSH 6 |
| Order No.: | 1080200000 |
| Version: | Accessories, Rail support, Wemid |
| GTIN (EAN): | 4008190965150 |
| Qty.: | 10 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 147 mm |
| Height (inches): | 5.787 inch |
| Depth: | 39 mm |
| Depth (inches): | 1.535 inch |
| Net weight: | 13.4 g |
| Operating temperature, max.: | 120 °C |
| Operating temperature, min.: | -50 °C |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Operating temperature: | -50 °C.../TX]120 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | For the mounting rails |
| Rail: | TS 35 |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Pitch in mm (P): | 8 mm |
| Mounting offset: | 56 mm |
| ETIM 6.0: | EC001166 |
| ETIM 7.0: | EC001166 |
| eClass 9.0: | 27-40-06-07 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-40-06-07 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | WSH 6 |
| Order No.: | 1080200000 |
| Version: | Accessories, Rail support, Wemid |
| GTIN (EAN): | 4008190965150 |
| Qty.: | 10 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 147 mm |
| Height (inches): | 5.787 inch |
| Depth: | 39 mm |
| Depth (inches): | 1.535 inch |
| Net weight: | 13.4 g |
| Operating temperature, max.: | 120 °C |
| Operating temperature, min.: | -50 °C |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Operating temperature: | -50 °C.../TX]120 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | For the mounting rails |
| Rail: | TS 35 |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Pitch in mm (P): | 8 mm |
| Mounting offset: | 56 mm |
| ETIM 6.0: | EC001166 |
| ETIM 7.0: | EC001166 |
| eClass 9.0: | 27-40-06-07 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-40-06-07 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,017 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
