Produkt
Weidmueller
1074970000
KDSW M63 BN L NI 2 G63
Poproś o ofertę

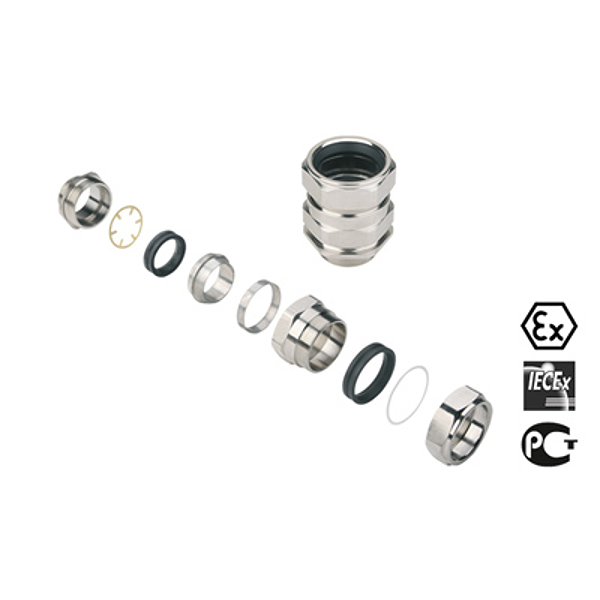

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1074970000
KDSW M63 BN L NI 2 G63
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | KDSW M63 BN L NI 2 G63 |
| Order No.: | 1074970000 |
| Version: | KDSW (Klippon double seal SWA Ex cable gland), Cable glands, M 63, 19 mm, Single-wire armouring, Lead sheath armouring, 2.5 - OD min. 58.4 - OD max. 65.8 mm, ID min. 49.50 - ID max. 56.00 mm, IP66, IP68 - 2.5 bar, Brass, nickel-plated |
| GTIN (EAN): | 4032248837311 |
| Qty.: | 1 pc(s). |
| Length: | 76 mm |
| Length (inches): | 2.992 inch |
| Net weight: | 1,140 g |
| REACH SVHC: | Lead 7439-92-1 |
| Approval conditions: | ATEX, IECEX, EAC |
| Certificate No. (ATEX): | SIRA05ATEX1286X |
| Certificate No. (IECEX): | IECEXSIR05.0067X |
| Certificate no. cable gland (ATEX): | SIRA 05ATEX1286X |
| Certificate no. cable gland (EAC): | RU C-DE.HA65.B.00568 20 |
| Certificate no. cable gland (IECEx): | IECEx SIR 05.0067X |
| Identification: | ATEX: II 2G, Ex db IIC Gb, Ex eb IIC Gb, II 1D, Ex ta IIIC Da, IECEx: Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da |
| Material: | Brass, nickel-plated |
| Cable glands: | metric, nickel-plated brass |
| External thread: | M 63 |
| Pitch of thread: | 1.5 mm |
| Length of thread: | 19 mm |
| AF size 1: | 80 mm |
| Protection degree: | IP54 |
| Protection degree with GWDR: | IP66, IP68 - 2.5 bar |
| Water depth: | 25 m (30 Min.) |
| Operating temperature range, min.: | -35 °C |
| Operating temperature range, max.: | 90 °C |
| Outer cable diameter, min.: | 58.4 mm |
| Outer cable diameter, max.: | 65.8 mm |
| Inner cable diameter, min.: | 49.5 mm |
| Inner cable diameter, max.: | 56 mm |
| Type of armouring, short term: | SWA |
| Type of armouring: | Single-wire armouring, Lead sheath armouring |
| Armour, min.: | 2.5 mm |
| Size of protective cap: | L80 |
| O-Ring: | NBR |
| Seal insert: | CR |
| Sealing: | CR |
| Explosion protection type: | Improved safety Ex e, Pressure-resistant Ex d encapsulation |
| Installation guidelines: | See assembly instructions |
| ETIM 6.0: | EC000441 |
| ETIM 7.0: | EC000441 |
| eClass 9.0: | 27-14-44-32 |
| eClass 9.1: | 27-14-44-34 |
| eClass 10.0: | 27-14-44-32 |
| Approvals: | EAC; ATEX; IECEX |
| ROHS: | Conform |
| Type: | KDSW M63 BN L NI 2 G63 |
| Order No.: | 1074970000 |
| Version: | KDSW (Klippon double seal SWA Ex cable gland), Cable glands, M 63, 19 mm, Single-wire armouring, Lead sheath armouring, 2.5 - OD min. 58.4 - OD max. 65.8 mm, ID min. 49.50 - ID max. 56.00 mm, IP66, IP68 - 2.5 bar, Brass, nickel-plated |
| GTIN (EAN): | 4032248837311 |
| Qty.: | 1 pc(s). |
| Length: | 76 mm |
| Length (inches): | 2.992 inch |
| Net weight: | 1,140 g |
| REACH SVHC: | Lead 7439-92-1 |
| Approval conditions: | ATEX, IECEX, EAC |
| Certificate No. (ATEX): | SIRA05ATEX1286X |
| Certificate No. (IECEX): | IECEXSIR05.0067X |
| Certificate no. cable gland (ATEX): | SIRA 05ATEX1286X |
| Certificate no. cable gland (EAC): | RU C-DE.HA65.B.00568 20 |
| Certificate no. cable gland (IECEx): | IECEx SIR 05.0067X |
| Identification: | ATEX: II 2G, Ex db IIC Gb, Ex eb IIC Gb, II 1D, Ex ta IIIC Da, IECEx: Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da |
| Material: | Brass, nickel-plated |
| Cable glands: | metric, nickel-plated brass |
| External thread: | M 63 |
| Pitch of thread: | 1.5 mm |
| Length of thread: | 19 mm |
| AF size 1: | 80 mm |
| Protection degree: | IP54 |
| Protection degree with GWDR: | IP66, IP68 - 2.5 bar |
| Water depth: | 25 m (30 Min.) |
| Operating temperature range, min.: | -35 °C |
| Operating temperature range, max.: | 90 °C |
| Outer cable diameter, min.: | 58.4 mm |
| Outer cable diameter, max.: | 65.8 mm |
| Inner cable diameter, min.: | 49.5 mm |
| Inner cable diameter, max.: | 56 mm |
| Type of armouring, short term: | SWA |
| Type of armouring: | Single-wire armouring, Lead sheath armouring |
| Armour, min.: | 2.5 mm |
| Size of protective cap: | L80 |
| O-Ring: | NBR |
| Seal insert: | CR |
| Sealing: | CR |
| Explosion protection type: | Improved safety Ex e, Pressure-resistant Ex d encapsulation |
| Installation guidelines: | See assembly instructions |
| ETIM 6.0: | EC000441 |
| ETIM 7.0: | EC000441 |
| eClass 9.0: | 27-14-44-32 |
| eClass 9.1: | 27-14-44-34 |
| eClass 10.0: | 27-14-44-32 |
| Approvals: | EAC; ATEX; IECEX |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 1,14 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
