Produkt
Weidmueller
1069900000
WDS 2
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

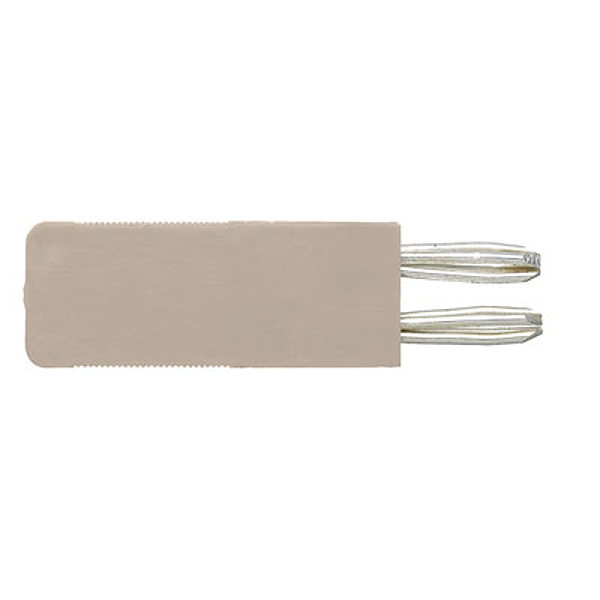

Weidmueller 1069900000
WDS 2
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WDS 2 |
| Order No.: | 1069900000 |
| Version: | W-Series, Cross-connector, For the terminals, Number of poles: 2 |
| GTIN (EAN): | 4008190094850 |
| Qty.: | 20 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 10 mm |
| Height (inches): | 0.394 inch |
| Depth: | 36 mm |
| Depth (inches): | 1.417 inch |
| Net weight: | 3.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Number of cross-connected terminals: | 2 |
| Type: | Cross-connector |
| Pitch in mm (P): | 5 mm |
| Rated current: | 22 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | WDS 2 |
| Order No.: | 1069900000 |
| Version: | W-Series, Cross-connector, For the terminals, Number of poles: 2 |
| GTIN (EAN): | 4008190094850 |
| Qty.: | 20 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 10 mm |
| Height (inches): | 0.394 inch |
| Depth: | 36 mm |
| Depth (inches): | 1.417 inch |
| Net weight: | 3.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | For the terminals |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | when screwed in |
| Number of cross-connected terminals: | 2 |
| Type: | Cross-connector |
| Pitch in mm (P): | 5 mm |
| Rated current: | 22 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,004 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
