Produkt
Weidmueller
1062520000
WTL 6/1 EN STB SW
Poproś o ofertę

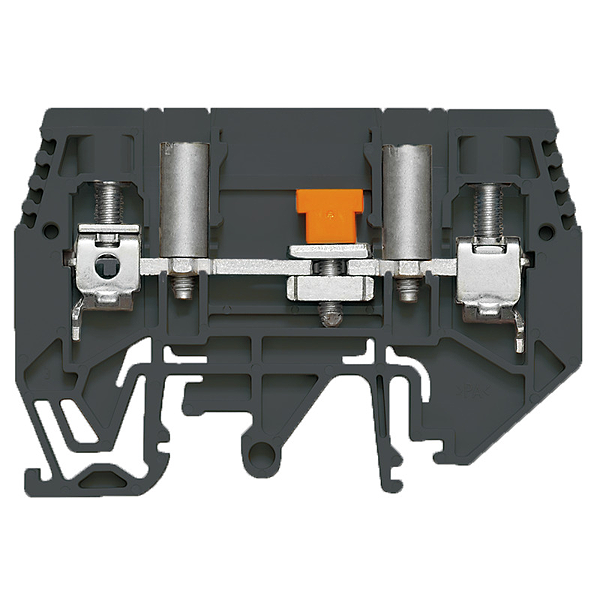

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1062520000
WTL 6/1 EN STB SW
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WTL 6/1 EN STB SW |
| Order No.: | 1062520000 |
| Version: | Test-disconnect terminal, Screw connection, 6 mm², 630 V, 41 A, sliding, black |
| GTIN (EAN): | 4032248841127 |
| Qty.: | 50 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 68.5 mm |
| Height (inches): | 2.697 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Depth including DIN rail: | 48.5 mm |
| Net weight: | 25.28 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, Spacer, With sockets, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32, TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 45 A |
| Current size C (CSA): | 45 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Blade size: | 0.8 x 4.0 mm |
| Number of connections: | 2 |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 1 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| TS 32 offset: | 34.5 mm |
| TS 35 offset: | 34.5 mm |
| Cross-disconnect: | without |
| Integral test socket: | Yes |
| Slitting: | sliding |
| Torque max. screw separator: | 0.7 Nm |
| Torque min. screw separator: | 0.5 Nm |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 630 V |
| Rated current: | 41 A |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 20 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 20 AWG |
| Current size B (UR): | 45 A |
| Current size C (UR): | 45 A |
| Voltage size B (UR): | 300 V |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| ROHS: | Conform |
| Type: | WTL 6/1 EN STB SW |
| Order No.: | 1062520000 |
| Version: | Test-disconnect terminal, Screw connection, 6 mm², 630 V, 41 A, sliding, black |
| GTIN (EAN): | 4032248841127 |
| Qty.: | 50 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 68.5 mm |
| Height (inches): | 2.697 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Depth including DIN rail: | 48.5 mm |
| Net weight: | 25.28 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | Wemid |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, Spacer, With sockets, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32, TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 45 A |
| Current size C (CSA): | 45 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Blade size: | 0.8 x 4.0 mm |
| Number of connections: | 2 |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 1 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| TS 32 offset: | 34.5 mm |
| TS 35 offset: | 34.5 mm |
| Cross-disconnect: | without |
| Integral test socket: | Yes |
| Slitting: | sliding |
| Torque max. screw separator: | 0.7 Nm |
| Torque min. screw separator: | 0.5 Nm |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 630 V |
| Rated current: | 41 A |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 20 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 20 AWG |
| Current size B (UR): | 45 A |
| Current size C (UR): | 45 A |
| Voltage size B (UR): | 300 V |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000902 |
| ETIM 7.0: | EC000902 |
| eClass 9.0: | 27-14-11-26 |
| eClass 9.1: | 27-14-11-26 |
| eClass 10.0: | 27-14-11-26 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,025 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
