Produkt
Weidmueller
1059140000
WAP WDK2.5 GN
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

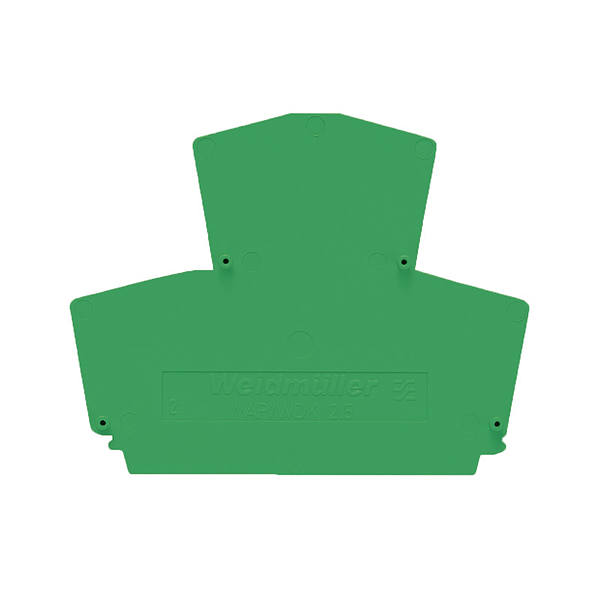

Weidmueller 1059140000
WAP WDK2.5 GN
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WAP WDK2.5 GN |
| Order No.: | 1059140000 |
| Version: | W-Series, End plate |
| GTIN (EAN): | 4008190901790 |
| Qty.: | 20 pc(s). |
| Width: | 1.5 mm |
| Width (inches): | 0.059 inch |
| Height: | 69 mm |
| Height (inches): | 2.717 inch |
| Depth: | 54.5 mm |
| Depth (inches): | 2.146 inch |
| Net weight: | 4.75 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Version: | End plate |
| Installation advice: | Feed-through (bushing), Direct mounting |
| Snap-on: | No |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
| Type: | WAP WDK2.5 GN |
| Order No.: | 1059140000 |
| Version: | W-Series, End plate |
| GTIN (EAN): | 4008190901790 |
| Qty.: | 20 pc(s). |
| Width: | 1.5 mm |
| Width (inches): | 0.059 inch |
| Height: | 69 mm |
| Height (inches): | 2.717 inch |
| Depth: | 54.5 mm |
| Depth (inches): | 2.146 inch |
| Net weight: | 4.75 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Version: | End plate |
| Installation advice: | Feed-through (bushing), Direct mounting |
| Snap-on: | No |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,005 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
