Produkt
Weidmueller
1052140000
KIT KLTR 4TR POCON 8
Poproś o ofertę

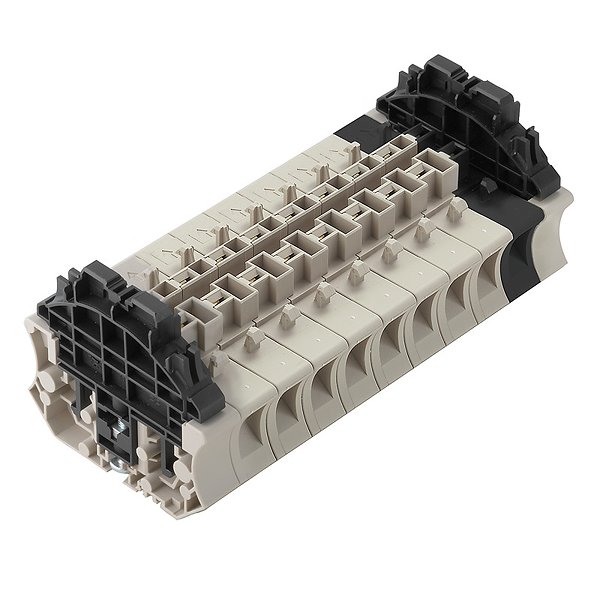

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1052140000
KIT KLTR 4TR POCON 8
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | KIT KLTR 4TR POCON 8 |
| Order No.: | 1052140000 |
| GTIN (EAN): | 4032248899340 |
| Qty.: | 5 pc(s). |
| Net weight: | 207.16 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Operating temperature: | -40 °C.../TX]55 °C |
| Storage temperature: | 10 °C...40 °C |
| Protection degree: | IP20, IP40 (in plugged condition) |
| Rated current: | 300 A / 1 s, 60 A / 6 s, 1-mm conductor²: 19 A |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 6 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Max. voltage: | 2.21 kV / 50 Hz for 1 min |
| Number of feed-through contacts: | 8 |
| Number of signal contacts: | 1 |
| Pollution severity: | 3 |
| Protection degree: | IP20, IP40 (in plugged condition) |
| Rated current: | 300 A / 1 s, 60 A / 6 s, 1-mm conductor²: 19 A |
| Rated voltage (text): | 250 V, 2.5 kV |
| Type of mounting: | Section |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 10 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| ROHS: | Conform |
| Type: | KIT KLTR 4TR POCON 8 |
| Order No.: | 1052140000 |
| GTIN (EAN): | 4032248899340 |
| Qty.: | 5 pc(s). |
| Net weight: | 207.16 g |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Operating temperature: | -40 °C.../TX]55 °C |
| Storage temperature: | 10 °C...40 °C |
| Protection degree: | IP20, IP40 (in plugged condition) |
| Rated current: | 300 A / 1 s, 60 A / 6 s, 1-mm conductor²: 19 A |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 6 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Max. voltage: | 2.21 kV / 50 Hz for 1 min |
| Number of feed-through contacts: | 8 |
| Number of signal contacts: | 1 |
| Pollution severity: | 3 |
| Protection degree: | IP20, IP40 (in plugged condition) |
| Rated current: | 300 A / 1 s, 60 A / 6 s, 1-mm conductor²: 19 A |
| Rated voltage (text): | 250 V, 2.5 kV |
| Type of mounting: | Section |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 10 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,243 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
