1034400000
WDK 2.5/BLZ/5.08/ZA
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

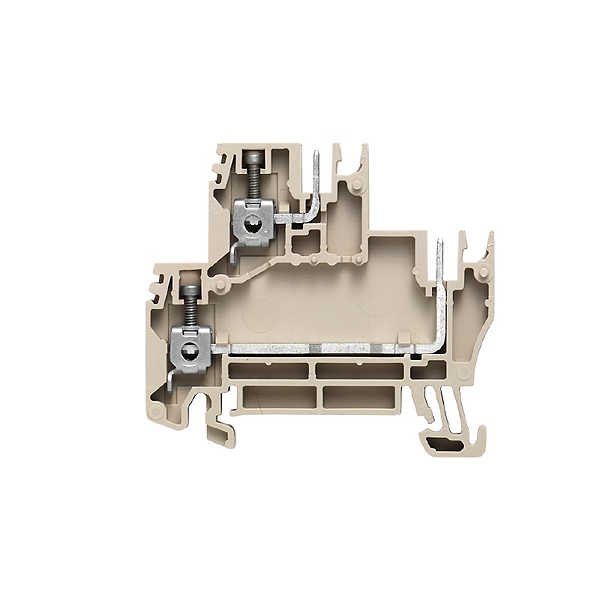

Weidmueller 1034400000
WDK 2.5/BLZ/5.08/ZA
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WDK 2.5/BLZ/5.08/ZA |
| Order No.: | 1034400000 |
| Version: | W-Series, Plug-in modular terminals, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4008190193058 |
| Qty.: | 50 pc(s). |
| Width: | 5.08 mm |
| Width (inches): | 0.2 inch |
| Height: | 58 mm |
| Height (inches): | 2.283 inch |
| Depth: | 52.5 mm |
| Depth (inches): | 2.067 inch |
| Depth including DIN rail: | 53 mm |
| Net weight: | 10.06 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | 2 screw connections - 2 plug-in connections, With assembly peg, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 2 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Cross-section for connected wire, solid, two clampable wires, min.: | 0.5 mm² |
| Cross-section for connected wire, solid, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 1.5 mm² |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 20 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Torque level with DMS electric screwdriver: | 1 |
| Type of connection: | Screw connection |
| Type of connection 2: | Plug-in connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 16.5 A |
| Current at maximum wires: | 18 A |
| Standards: | IEC 61984, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 22 AWG |
| Current size B (cURus): | 20 A |
| Current size D (cURus): | 10 A |
| Voltage size B (cURus): | 300 V |
| Voltage size D (cURus): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WDK 2.5/BLZ/5.08/ZA |
| Order No.: | 1034400000 |
| Version: | W-Series, Plug-in modular terminals, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4008190193058 |
| Qty.: | 50 pc(s). |
| Width: | 5.08 mm |
| Width (inches): | 0.2 inch |
| Height: | 58 mm |
| Height (inches): | 2.283 inch |
| Depth: | 52.5 mm |
| Depth (inches): | 2.067 inch |
| Depth including DIN rail: | 53 mm |
| Net weight: | 10.06 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | 2 screw connections - 2 plug-in connections, With assembly peg, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 2 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Cross-section for connected wire, solid, two clampable wires, min.: | 0.5 mm² |
| Cross-section for connected wire, solid, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 1.5 mm² |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 20 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Torque level with DMS electric screwdriver: | 1 |
| Type of connection: | Screw connection |
| Type of connection 2: | Plug-in connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 16.5 A |
| Current at maximum wires: | 18 A |
| Standards: | IEC 61984, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 22 AWG |
| Current size B (cURus): | 20 A |
| Current size D (cURus): | 10 A |
| Voltage size B (cURus): | 300 V |
| Voltage size D (cURus): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
