Produkt
Weidmueller
1034000000
WMA 4/4
Poproś o ofertę

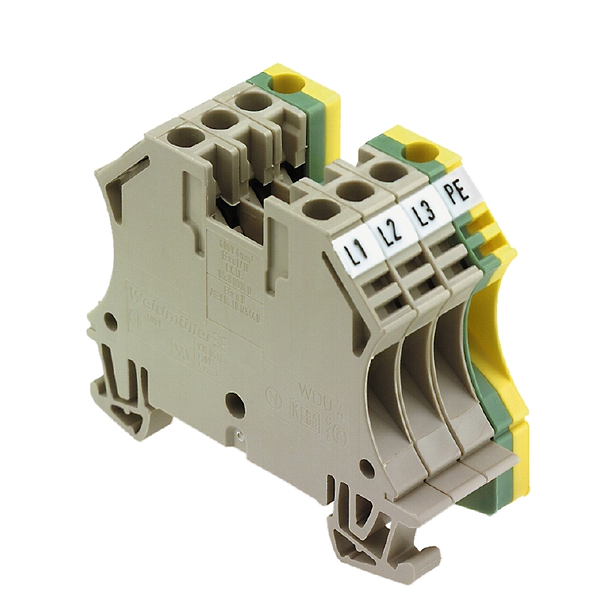

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1034000000
WMA 4/4
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WMA 4/4 |
| Order No.: | 1034000000 |
| Version: | Feed-through terminal, Motor-connection terminal, Screw connection, 4 mm², 800 V, 32 A, dark beige |
| GTIN (EAN): | 4008190162924 |
| Qty.: | 20 pc(s). |
| Width: | 24.5 mm |
| Width (inches): | 0.965 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 47 mm |
| Depth (inches): | 1.85 inch |
| Weight: | 50.6 g |
| Net weight: | 46.45 g |
| Operating temperature range: | Einsatztemperaturbereich siehe EG-Baumusterprüfbescheinigung/IECEx-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Operating temperature range: | Einsatztemperaturbereich siehe EG-Baumusterprüfbescheinigung/IECEx-Certificate of Conformity |
| Version: | Screw connection, for plug-in cross-connector, for screwable cross-connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 1 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | Yes |
| Number of similar terminals: | 3 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 6 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A4 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 1 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Torque level with DMS electric screwdriver: | 1 |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 10 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 800 V |
| Rated current: | 32 A |
| Current at maximum wires: | 41 A |
| Volume resistance according to IEC 60947-7-x: | 4 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WMA 4/4 |
| Order No.: | 1034000000 |
| Version: | Feed-through terminal, Motor-connection terminal, Screw connection, 4 mm², 800 V, 32 A, dark beige |
| GTIN (EAN): | 4008190162924 |
| Qty.: | 20 pc(s). |
| Width: | 24.5 mm |
| Width (inches): | 0.965 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 47 mm |
| Depth (inches): | 1.85 inch |
| Weight: | 50.6 g |
| Net weight: | 46.45 g |
| Operating temperature range: | Einsatztemperaturbereich siehe EG-Baumusterprüfbescheinigung/IECEx-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Operating temperature range: | Einsatztemperaturbereich siehe EG-Baumusterprüfbescheinigung/IECEx-Certificate of Conformity |
| Version: | Screw connection, for plug-in cross-connector, for screwable cross-connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 1 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | Yes |
| Number of similar terminals: | 3 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 6 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A4 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 1 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Torque level with DMS electric screwdriver: | 1 |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 10 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 800 V |
| Rated current: | 32 A |
| Current at maximum wires: | 41 A |
| Volume resistance according to IEC 60947-7-x: | 4 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,049 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
