1029500000
WFF 120/AH
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

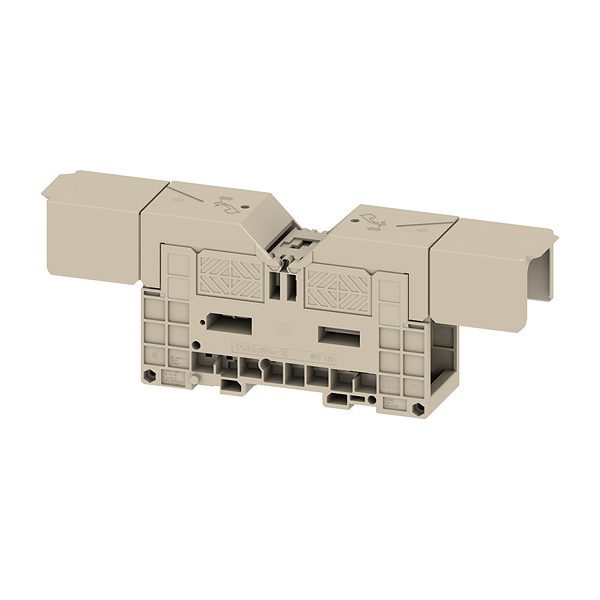

Weidmueller 1029500000
WFF 120/AH
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WFF 120/AH |
| Order No.: | 1029500000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4008190086664 |
| Qty.: | 4 pc(s). |
| Width: | 42 mm |
| Width (inches): | 1.654 inch |
| Height: | 229.5 mm |
| Height (inches): | 9.035 inch |
| Depth: | 88.5 mm |
| Depth (inches): | 3.484 inch |
| Depth including DIN rail: | 88.5 mm |
| Weight: | 302.5 g |
| Net weight: | 278.45 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | KEMA98ATEX1684U |
| Certificate No. (IECEX): | IECEXKEM07.0053U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 234 A |
| Wire cross section max. (ATEX): | 120 mm² |
| Max. voltage (IECEX): | 1100 V |
| Current (IECEX): | 234 A |
| Wire cross section max. (IECEX): | 120 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | Yes |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1244019 |
| Current size C (CSA): | 310 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 250 kcmil |
| Wire cross section min. (CSA): | 10 AWG |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 16...120 mm² |
| Cable lug to DIN 46234: | 6...150 mm² |
| Cable lug to DIN 46235: | 16...150 mm² |
| Clamping range, max.: | 150 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 2 |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| TS 15 offset: | 13.5 mm |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 269 A |
| Current at maximum wires: | 309 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 16...120 mm² |
| Cable lug to DIN 46234: | 6...150 mm² |
| Cable lug to DIN 46235: | 16...150 mm² |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 250 kcmil |
| Conductor size Factory wiring min. (UR): | 10 AWG |
| Conductor size Field wiring max. (UR): | 250 kcmil |
| Conductor size Field wiring min. (UR): | 10 AWG |
| Current size C (UR): | 310 A |
| Voltage size C (UR): | 1000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | WFF 120/AH |
| Order No.: | 1029500000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4008190086664 |
| Qty.: | 4 pc(s). |
| Width: | 42 mm |
| Width (inches): | 1.654 inch |
| Height: | 229.5 mm |
| Height (inches): | 9.035 inch |
| Depth: | 88.5 mm |
| Depth (inches): | 3.484 inch |
| Depth including DIN rail: | 88.5 mm |
| Weight: | 302.5 g |
| Net weight: | 278.45 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | KEMA98ATEX1684U |
| Certificate No. (IECEX): | IECEXKEM07.0053U |
| Max. voltage (ATEX): | 1100 V |
| Current (ATEX): | 234 A |
| Wire cross section max. (ATEX): | 120 mm² |
| Max. voltage (IECEX): | 1100 V |
| Current (IECEX): | 234 A |
| Wire cross section max. (IECEX): | 120 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Explosion-tested version: | Yes |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1244019 |
| Current size C (CSA): | 310 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 250 kcmil |
| Wire cross section min. (CSA): | 10 AWG |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 16...120 mm² |
| Cable lug to DIN 46234: | 6...150 mm² |
| Cable lug to DIN 46235: | 16...150 mm² |
| Clamping range, max.: | 150 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 2 |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| TS 15 offset: | 13.5 mm |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 269 A |
| Current at maximum wires: | 309 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| 2 x cable lugs DIN 46 234: | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235: | 16...120 mm² |
| Cable lug to DIN 46234: | 6...150 mm² |
| Cable lug to DIN 46235: | 16...150 mm² |
| Stud size for spade connection: | M 10 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 250 kcmil |
| Conductor size Factory wiring min. (UR): | 10 AWG |
| Conductor size Field wiring max. (UR): | 250 kcmil |
| Conductor size Field wiring min. (UR): | 10 AWG |
| Current size C (UR): | 310 A |
| Voltage size C (UR): | 1000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
