Produkt
Weidmueller
1025560000
SFC 3/21 MC SDR
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

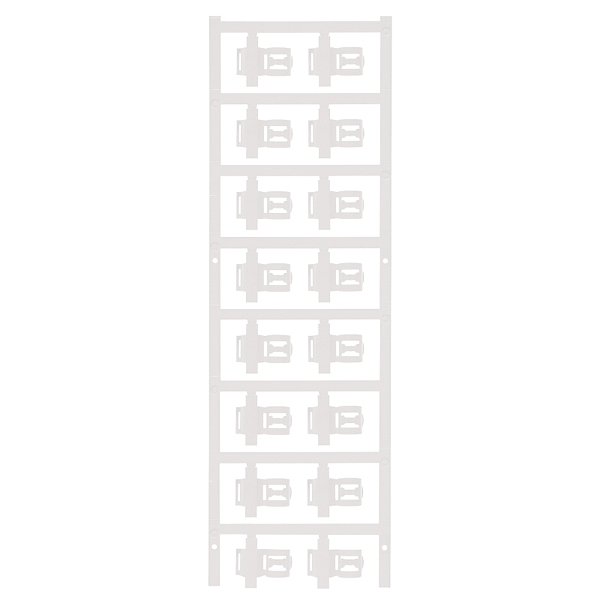

Weidmueller 1025560000
SFC 3/21 MC SDR
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SFC 3/21 MC SDR |
| Order No.: | 1025560000 |
| Version: | SlimFix Clip, Conductor and cable markers, 3.5 - 7 mm, 21 x 12.5 mm, To customer specification |
| GTIN (EAN): | 4032248746743 |
| Qty.: | 16 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 21 mm |
| Height (inches): | 0.827 inch |
| Depth: | 11.3 mm |
| Depth (inches): | 0.445 inch |
| Net weight: | 0.922 g |
| Advice label: | Colour based on customer requirements (Please send M-Print PRO file) |
| Colour: | To customer specification |
| Colour of printing: | black |
| Halogen: | No |
| Material: | Polyamide 66 |
| Operating temperature range: | -40...100 °C |
| Orientation of print: | horizontal |
| Printed characters: | Based on customer requirements (Please send M-Print PRO file) |
| Printing method: | MC Laser |
| Size of labelling field: | 21 x 5 mm |
| Type of printing: | To customer specification |
| UL 94 flammability rating: | V-2 |
| Width: | 12.5 mm |
| Conductor O.D.: | 3.5 - 7 mm |
| Conductor O.D., max.: | 7 mm |
| Conductor O.D., min.: | 3.5 mm |
| Conductor cross-section, max.: | 10 mm² |
| Conductor cross-section, min.: | 4 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | SFC 3/21 MC SDR |
| Order No.: | 1025560000 |
| Version: | SlimFix Clip, Conductor and cable markers, 3.5 - 7 mm, 21 x 12.5 mm, To customer specification |
| GTIN (EAN): | 4032248746743 |
| Qty.: | 16 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 21 mm |
| Height (inches): | 0.827 inch |
| Depth: | 11.3 mm |
| Depth (inches): | 0.445 inch |
| Net weight: | 0.922 g |
| Advice label: | Colour based on customer requirements (Please send M-Print PRO file) |
| Colour: | To customer specification |
| Colour of printing: | black |
| Halogen: | No |
| Material: | Polyamide 66 |
| Operating temperature range: | -40...100 °C |
| Orientation of print: | horizontal |
| Printed characters: | Based on customer requirements (Please send M-Print PRO file) |
| Printing method: | MC Laser |
| Size of labelling field: | 21 x 5 mm |
| Type of printing: | To customer specification |
| UL 94 flammability rating: | V-2 |
| Width: | 12.5 mm |
| Conductor O.D.: | 3.5 - 7 mm |
| Conductor O.D., max.: | 7 mm |
| Conductor O.D., min.: | 3.5 mm |
| Conductor cross-section, max.: | 10 mm² |
| Conductor cross-section, min.: | 4 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,001 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
