Produkt
Weidmueller
1025220000
SFC 3/12 MC NE WS
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller
Weidmueller 1025220000
SFC 3/12 MC NE WS
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SFC 3/12 MC NE WS |
| Order No.: | 1025220000 |

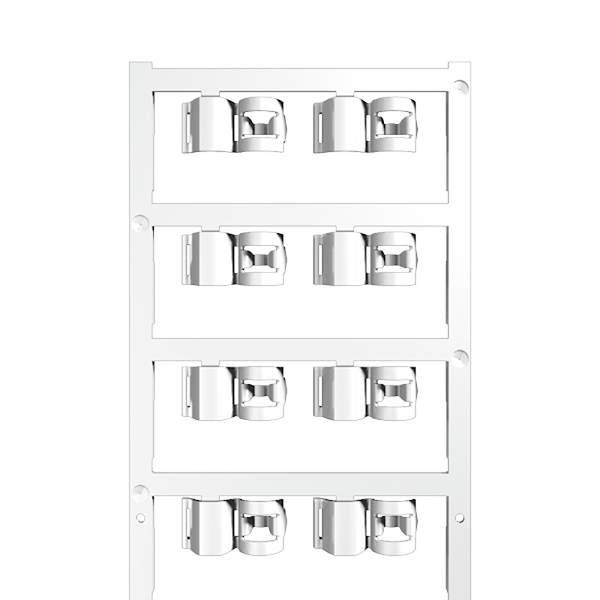

| Version: | SlimFix Clip, Conductor and cable markers, 3.5 - 7 mm, 12 x 12.5 mm, white |
| GTIN (EAN): | 4032248746286 |
| Qty.: | 80 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 12 mm |
| Height (inches): | 0.472 inch |
| Depth: | 11.3 mm |
| Depth (inches): | 0.445 inch |
| Net weight: | 1.313 g |
| Colour: | white |
| Halogen: | No |
| Material: | Polyamide 66 |
| Material colour according to resistance code: | 9 |
| Operating temperature range: | -40...100 °C |
| Recommended industries: | Machinery |
| Size of labelling field: | 12 x 5 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-2 |
| Width: | 12.5 mm |
| Conductor O.D.: | 3.5 - 7 mm |
| Conductor O.D., max.: | 7 mm |
| Conductor O.D., min.: | 3.5 mm |
| Conductor cross-section, max.: | 10 mm² |
| Conductor cross-section, min.: | 4 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | SFC 3/12 MC NE WS |
| Order No.: | 1025220000 |
| Version: | SlimFix Clip, Conductor and cable markers, 3.5 - 7 mm, 12 x 12.5 mm, white |
| GTIN (EAN): | 4032248746286 |
| Qty.: | 80 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 12 mm |
| Height (inches): | 0.472 inch |
| Depth: | 11.3 mm |
| Depth (inches): | 0.445 inch |
| Net weight: | 1.313 g |
| Colour: | white |
| Halogen: | No |
| Material: | Polyamide 66 |
| Material colour according to resistance code: | 9 |
| Operating temperature range: | -40...100 °C |
| Recommended industries: | Machinery |
| Size of labelling field: | 12 x 5 mm |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-2 |
| Width: | 12.5 mm |
| Conductor O.D.: | 3.5 - 7 mm |
| Conductor O.D., max.: | 7 mm |
| Conductor O.D., min.: | 3.5 mm |
| Conductor cross-section, max.: | 10 mm² |
| Conductor cross-section, min.: | 4 mm² |
| Halogen: | No |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,001 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
