Produkt
Weidmueller
1023100000
WDK 2.5/D/3
Poproś o ofertę

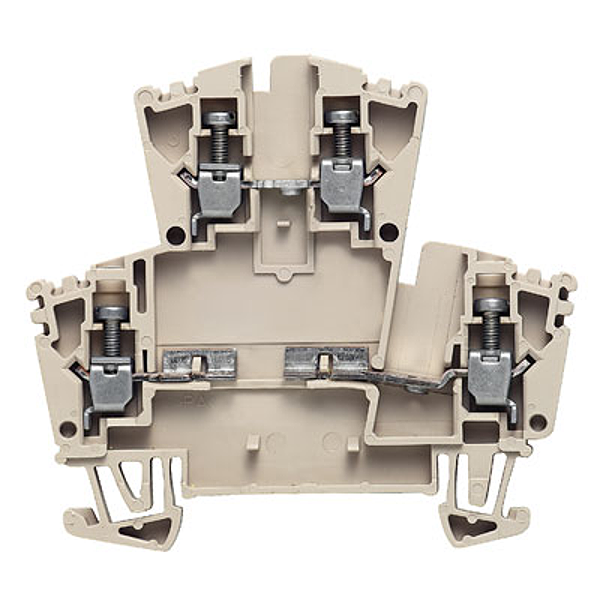

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1023100000
WDK 2.5/D/3
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WDK 2.5/D/3 |
| Order No.: | 1023100000 |
| Version: | W-Series, Component terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4008190173784 |
| Qty.: | 100 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 69 mm |
| Height (inches): | 2.717 inch |
| Depth: | 62.5 mm |
| Depth (inches): | 2.461 inch |
| Depth including DIN rail: | 63 mm |
| Weight: | 13.56 g |
| Net weight: | 12.63 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, with diode, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 2 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component current: | 1 A |
| Component type: | Diode |
| Component voltage: | 1,000 V |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.05 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 1 A |
| Current at maximum wires: | 1 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Product information: | The allowed continuous operating temperature must be observed |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WDK 2.5/D/3 |
| Order No.: | 1023100000 |
| Version: | W-Series, Component terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4008190173784 |
| Qty.: | 100 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 69 mm |
| Height (inches): | 2.717 inch |
| Depth: | 62.5 mm |
| Depth (inches): | 2.461 inch |
| Depth including DIN rail: | 63 mm |
| Weight: | 13.56 g |
| Net weight: | 12.63 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, with diode, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 2 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component current: | 1 A |
| Component type: | Diode |
| Component voltage: | 1,000 V |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.05 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 4 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 1 A |
| Current at maximum wires: | 1 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Product information: | The allowed continuous operating temperature must be observed |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,013 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
