1022400000
WDK 2.5 FV
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

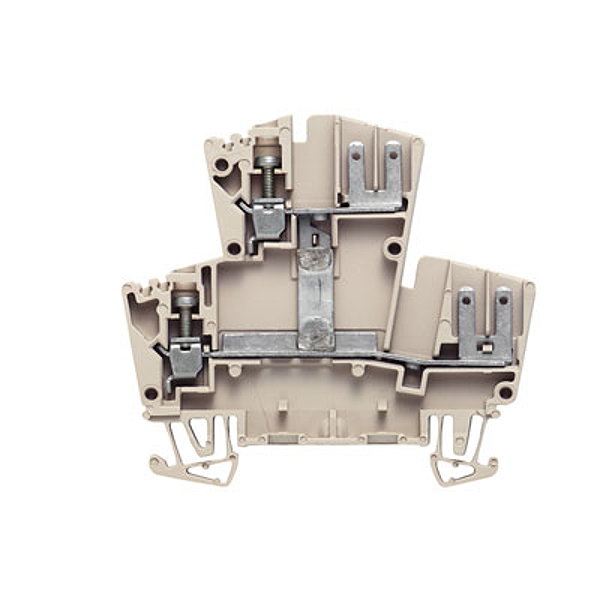

Weidmueller 1022400000
WDK 2.5 FV
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WDK 2.5 FV |
| Order No.: | 1022400000 |
| Version: | W-Series, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4008190171858 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 69.5 mm |
| Height (inches): | 2.736 inch |
| Depth: | 62.5 mm |
| Depth (inches): | 2.461 inch |
| Depth including DIN rail: | 63 mm |
| Net weight: | 12.35 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | 1 plug-in connection - 1 plug-in connection, With cable lug connection F2.8, pluggable, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 1.5 mm² |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-166 |
| Current size B (CSA): | 10 A |
| Current size C (CSA): | 10 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Connection type, additional connection: | Flat-blade connection |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Type of connection: | Screw connection |
| Type of connection 2: | Flat-blade connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Cable-lug connection: | Not slit |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 12 A |
| Current at maximum wires: | 12 A |
| Standards: | IEC 61210, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WDK 2.5 FV |
| Order No.: | 1022400000 |
| Version: | W-Series, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connection |
| GTIN (EAN): | 4008190171858 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 69.5 mm |
| Height (inches): | 2.736 inch |
| Depth: | 62.5 mm |
| Depth (inches): | 2.461 inch |
| Depth including DIN rail: | 63 mm |
| Net weight: | 12.35 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | 1 plug-in connection - 1 plug-in connection, With cable lug connection F2.8, pluggable, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 1.5 mm² |
| Explosion-tested version: | No |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-166 |
| Current size B (CSA): | 10 A |
| Current size C (CSA): | 10 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Connection type, additional connection: | Flat-blade connection |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Type of connection: | Screw connection |
| Type of connection 2: | Flat-blade connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Cable-lug connection: | Not slit |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 12 A |
| Current at maximum wires: | 12 A |
| Standards: | IEC 61210, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,025 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
