Produkt
Weidmueller
1018400000
WSI 6/2 O.TNHE
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

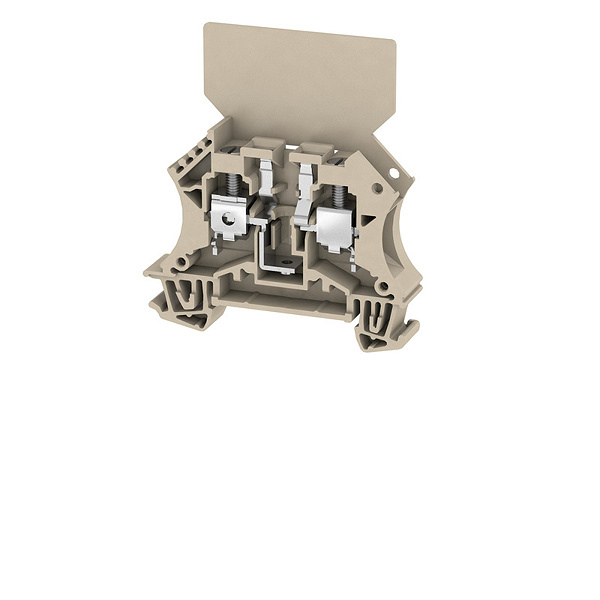

Weidmueller 1018400000
WSI 6/2 O.TNHE
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WSI 6/2 O.TNHE |
| Order No.: | 1018400000 |
| Version: | W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection |
| GTIN (EAN): | 4008190202590 |
| Qty.: | 25 pc(s). |
| Width: | 11.9 mm |
| Width (inches): | 0.469 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 66.5 mm |
| Depth (inches): | 2.618 inch |
| Depth including DIN rail: | 67 mm |
| Net weight: | 20.12 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 16 A |
| Current size C (CSA): | 16 A |
| Current size D (CSA): | 5 A |
| Voltage size B (CSA): | 150 V |
| Voltage size C (CSA): | 150 V |
| Voltage size D (CSA): | 600 V |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Blade size: | 0.8 x 4.0 mm |
| Number of connections: | 2 |
| Type of connection: | Screw connection |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 250 V |
| Rated voltage to adjoining terminal: | 500 V |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size C (UR): | 16 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| ROHS: | Conform |
| Type: | WSI 6/2 O.TNHE |
| Order No.: | 1018400000 |
| Version: | W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection |
| GTIN (EAN): | 4008190202590 |
| Qty.: | 25 pc(s). |
| Width: | 11.9 mm |
| Width (inches): | 0.469 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 66.5 mm |
| Depth (inches): | 2.618 inch |
| Depth including DIN rail: | 67 mm |
| Net weight: | 20.12 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Current size B (CSA): | 16 A |
| Current size C (CSA): | 16 A |
| Current size D (CSA): | 5 A |
| Voltage size B (CSA): | 150 V |
| Voltage size C (CSA): | 150 V |
| Voltage size D (CSA): | 600 V |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Blade size: | 0.8 x 4.0 mm |
| Number of connections: | 2 |
| Type of connection: | Screw connection |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 250 V |
| Rated voltage to adjoining terminal: | 500 V |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size C (UR): | 16 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,02 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
