1012300000
WSI 6/LD 60-150V DC/AC
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

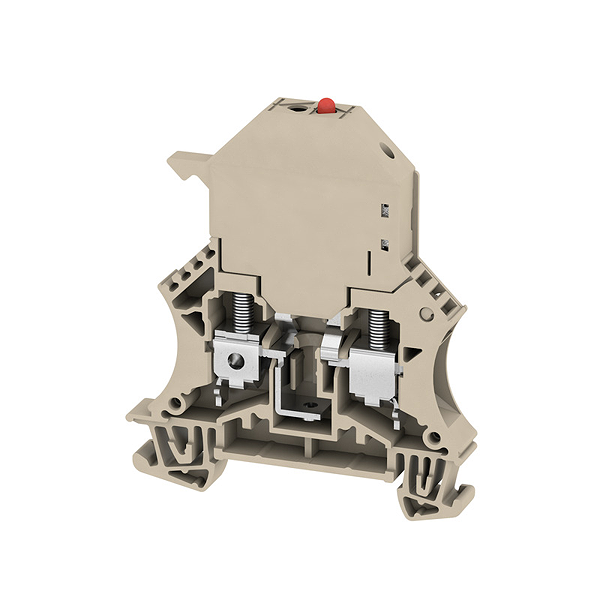

Weidmueller 1012300000
WSI 6/LD 60-150V DC/AC
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WSI 6/LD 60-150V DC/AC |
| Order No.: | 1012300000 |
| Version: | W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection |
| GTIN (EAN): | 4008190012908 |
| Qty.: | 10 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 71.5 mm |
| Depth (inches): | 2.815 inch |
| Depth including DIN rail: | 72 mm |
| Weight: | 21.5 g |
| Net weight: | 19.37 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, Fuse isolator, with LED, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 2.5 mm² |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 6 mm² |
| Blade size: | 0.8 x 4.0 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 32 mm |
| Operating voltage for display, max.: | 150 V |
| Operating voltage for display, min.: | 60 V |
| Type of voltage for indicator: | AC/DC |
| Cartridge fuse: | G-Si. 5 x 20 |
| Display: | Red LED |
| Fuse holder (cartridge holder): | Pivoting |
| Operating voltage, max.: | 150 V |
| Type of voltage for indicator: | AC/DC |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 150 V |
| Rated voltage to adjoining terminal: | 500 V |
| Rated current: | 6.3 A |
| Current at maximum wires: | 6.3 A |
| Standards: | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WSI 6/LD 60-150V DC/AC |
| Order No.: | 1012300000 |
| Version: | W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection |
| GTIN (EAN): | 4008190012908 |
| Qty.: | 10 pc(s). |
| Width: | 7.9 mm |
| Width (inches): | 0.311 inch |
| Height: | 60 mm |
| Height (inches): | 2.362 inch |
| Depth: | 71.5 mm |
| Depth (inches): | 2.815 inch |
| Depth including DIN rail: | 72 mm |
| Weight: | 21.5 g |
| Net weight: | 19.37 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Version: | Screw connection, Fuse isolator, with LED, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Wire connection cross section, finely stranded, two clampable wires, min.: | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max.: | 2.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: | 2.5 mm² |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1057876 |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 6 mm² |
| Blade size: | 0.8 x 4.0 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 32 mm |
| Operating voltage for display, max.: | 150 V |
| Operating voltage for display, min.: | 60 V |
| Type of voltage for indicator: | AC/DC |
| Cartridge fuse: | G-Si. 5 x 20 |
| Display: | Red LED |
| Fuse holder (cartridge holder): | Pivoting |
| Operating voltage, max.: | 150 V |
| Type of voltage for indicator: | AC/DC |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 150 V |
| Rated voltage to adjoining terminal: | 500 V |
| Rated current: | 6.3 A |
| Current at maximum wires: | 6.3 A |
| Standards: | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
