Produkt
Weidmueller
1010300000
WPE 10
Poproś o ofertę

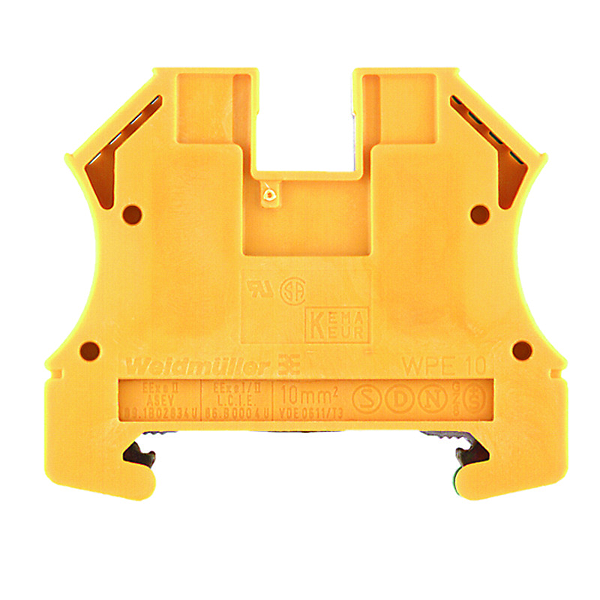

Prawa autorskie do obrazu: Weidmueller
Weidmueller 1010300000
WPE 10
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | WPE 10 |
| Order No.: | 1010300000 |
| Version: | PE terminal, Screw connection, 10 mm², 1200 A (10 mm²), Green/yellow |
| GTIN (EAN): | 4008190031251 |
| Qty.: | 50 pc(s). |
| Width: | 9.9 mm |
| Width (inches): | 0.39 inch |
| Height: | 56 mm |
| Height (inches): | 2.205 inch |
| Depth: | 46.5 mm |
| Depth (inches): | 1.831 inch |
| Depth including DIN rail: | 47 mm |
| Net weight: | 30.28 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | Green/yellow |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | DEMKO14ATEX1338U |
| Certificate No. (IECEX): | IECEXULD14.0005U |
| Wire cross section max. (ATEX): | 10 mm² |
| Wire cross section max. (IECEX): | 10 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection, With PE connection, in closed state |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | No |
| Explosion-tested version: | Yes |
| Installation advice: | when screwed in |
| Interlock: | for screw fixing |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 200039-1888378 |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 16 AWG |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 1.31 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 16 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B6 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 2.4 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| TS 35 offset: | 32 mm |
| Rated short-time current: | 1200 A (10 mm²) |
| Centre screw on PE terminals: | M 3 |
| Tightening torque range for fixing screw: | 0.5...1.0 Nm |
| PEN function: | No |
| Rated cross-section: | 10 mm² |
| Rated voltage to adjoining terminal: | 800 V |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage to adjacent terminal: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 6 AWG |
| Conductor size Factory wiring min. (UR): | 16 AWG |
| Conductor size Field wiring max. (UR): | 6 AWG |
| Conductor size Field wiring min. (UR): | 16 AWG |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | WPE 10 |
| Order No.: | 1010300000 |
| Version: | PE terminal, Screw connection, 10 mm², 1200 A (10 mm²), Green/yellow |
| GTIN (EAN): | 4008190031251 |
| Qty.: | 50 pc(s). |
| Width: | 9.9 mm |
| Width (inches): | 0.39 inch |
| Height: | 56 mm |
| Height (inches): | 2.205 inch |
| Depth: | 46.5 mm |
| Depth (inches): | 1.831 inch |
| Depth including DIN rail: | 47 mm |
| Net weight: | 30.28 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | Green/yellow |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | DEMKO14ATEX1338U |
| Certificate No. (IECEX): | IECEXULD14.0005U |
| Wire cross section max. (ATEX): | 10 mm² |
| Wire cross section max. (IECEX): | 10 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection, With PE connection, in closed state |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | No |
| Explosion-tested version: | Yes |
| Installation advice: | when screwed in |
| Interlock: | for screw fixing |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 200039-1888378 |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 16 AWG |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 1.31 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 16 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B6 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 2.4 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| TS 35 offset: | 32 mm |
| Rated short-time current: | 1200 A (10 mm²) |
| Centre screw on PE terminals: | M 3 |
| Tightening torque range for fixing screw: | 0.5...1.0 Nm |
| PEN function: | No |
| Rated cross-section: | 10 mm² |
| Rated voltage to adjoining terminal: | 800 V |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage to adjacent terminal: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 6 AWG |
| Conductor size Factory wiring min. (UR): | 16 AWG |
| Conductor size Field wiring max. (UR): | 6 AWG |
| Conductor size Field wiring min. (UR): | 16 AWG |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,03 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
