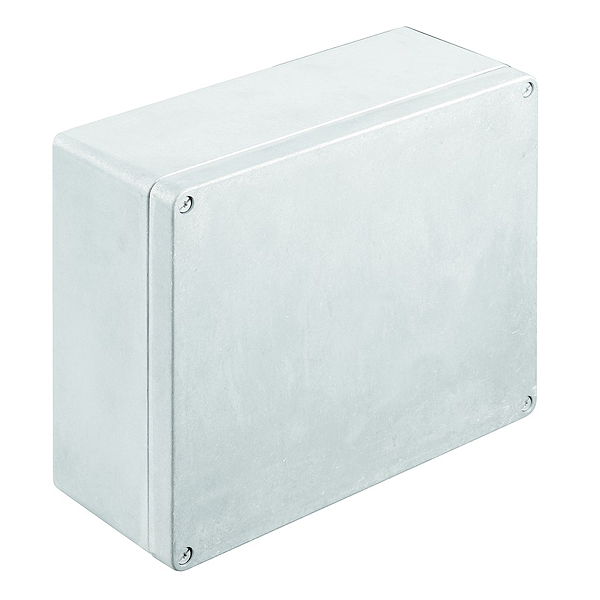

Weidmueller 0573700000
KLIPPON K71
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 230 mm, Width: 280 mm, Depth: 111 mm, Material: Aluminium AlSi12, untreated, silver
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | KLIPPON K71 |
| Order No.: | 0573700000 |
| Version: | Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 230 mm, Width: 280 mm, Depth: 111 mm, Material: Aluminium AlSi12, untreated, silver |
| GTIN (EAN): | 4008190051808 |
| Qty.: | 1 pc(s). |
| Width: | 280 mm |
| Width (inches): | 11.024 inch |
| Height: | 230 mm |
| Height (inches): | 9.055 inch |
| Depth: | 111 mm |
| Depth (inches): | 4.37 inch |
| Mounting dimension - width: | 260 mm |
| Mounting dimension - height: | 180 mm |
| Weight: | 2,925 g |
| Net weight: | 3,184 g |
| REACH SVHC: | Lead 7439-92-1 |
| M12: | 28 |
| M16: | 18 |
| M20: | 10 |
| M25: | 8 |
| M32: | 3 |
| M40: | 2 |
| M50: | 2 |
| M12: | 28 |
| M16: | 18 |
| M20: | 10 |
| M25: | 8 |
| M32: | 3 |
| M40: | 2 |
| M50: | 2 |
| M12: | 42 |
| M16: | 30 ???New1??? |
| M20: | 21 |
| M25: | 12 ???New1??? |
| M32: | 10 |
| M40: | 4 |
| M50: | 3 |
| Certificate No. (GERMLLOYD): | TAE00002SM |
| Certificate No. (MARITREG): | 19.00108.272 |
| Certificate no. (cULus): | E197061 |
| Certificate No. (DNVGL): | TAE00002SM |
| Areas of use: | Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction |
| Material thickness: | 4.5 mm |
| Material thickness of cover: | 4 mm |
| Material thickness of enclosure: | 4.5 mm |
| Standards: | EN 45545-2:2013 |
| Torque for lid screws: | 2.5 Nm |
| Material: | Aluminium AlSi12 |
| Seal material: | Chloroprene |
| Surface finish: | untreated |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 80 °C |
| Impact resistance: | 10.00 J |
| Protection degree: | IP66, IP67, IP68 |
| Note: protection class: | IP68 (t=72h, h=1m) |
| Enclosure attachment: | Holes 6 mm |
| Lid attachment: | M6 torx stainless steel screws with slot |
| Integral fixing: | Threaded holes M5 |
| WDU 10 / ZDU 10: | 2x21 |
| WDU 16 / ZDU 16: | 2x17 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 2x43 |
| WDU 35 / ZDU 35: | 2x13 |
| WDU 4 / ZDU 4: | 2x36 |
| WDU 6 / ZDU 6: | 2x26 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | * |
| WDU 4 / ZDU 4: | * |
| ETIM 6.0: | EC000261 |
| ETIM 7.0: | EC000261 |
| eClass 9.0: | 27-18-01-01 |
| eClass 9.1: | 27-18-92-90 |
| eClass 10.0: | 27-18-01-01 |
| UNSPSC: | 31-26-15-02 |
| ROHS: | Conform |
| Type: | KLIPPON K71 |
| Order No.: | 0573700000 |
| Version: | Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 230 mm, Width: 280 mm, Depth: 111 mm, Material: Aluminium AlSi12, untreated, silver |
| GTIN (EAN): | 4008190051808 |
| Qty.: | 1 pc(s). |
| Width: | 280 mm |
| Width (inches): | 11.024 inch |
| Height: | 230 mm |
| Height (inches): | 9.055 inch |
| Depth: | 111 mm |
| Depth (inches): | 4.37 inch |
| Mounting dimension - width: | 260 mm |
| Mounting dimension - height: | 180 mm |
| Weight: | 2,925 g |
| Net weight: | 3,184 g |
| REACH SVHC: | Lead 7439-92-1 |
| M12: | 28 |
| M16: | 18 |
| M20: | 10 |
| M25: | 8 |
| M32: | 3 |
| M40: | 2 |
| M50: | 2 |
| M12: | 28 |
| M16: | 18 |
| M20: | 10 |
| M25: | 8 |
| M32: | 3 |
| M40: | 2 |
| M50: | 2 |
| M12: | 42 |
| M16: | 30 ???New1??? |
| M20: | 21 |
| M25: | 12 ???New1??? |
| M32: | 10 |
| M40: | 4 |
| M50: | 3 |
| Certificate No. (GERMLLOYD): | TAE00002SM |
| Certificate No. (MARITREG): | 19.00108.272 |
| Certificate no. (cULus): | E197061 |
| Certificate No. (DNVGL): | TAE00002SM |
| Areas of use: | Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction |
| Material thickness: | 4.5 mm |
| Material thickness of cover: | 4 mm |
| Material thickness of enclosure: | 4.5 mm |
| Standards: | EN 45545-2:2013 |
| Torque for lid screws: | 2.5 Nm |
| Material: | Aluminium AlSi12 |
| Seal material: | Chloroprene |
| Surface finish: | untreated |
| Operating temperature, min.: | -40 °C |
| Operating temperature, max.: | 80 °C |
| Impact resistance: | 10.00 J |
| Protection degree: | IP66, IP67, IP68 |
| Note: protection class: | IP68 (t=72h, h=1m) |
| Enclosure attachment: | Holes 6 mm |
| Lid attachment: | M6 torx stainless steel screws with slot |
| Integral fixing: | Threaded holes M5 |
| WDU 10 / ZDU 10: | 2x21 |
| WDU 16 / ZDU 16: | 2x17 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | 2x43 |
| WDU 35 / ZDU 35: | 2x13 |
| WDU 4 / ZDU 4: | 2x36 |
| WDU 6 / ZDU 6: | 2x26 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5: | * |
| WDU 4 / ZDU 4: | * |
| ETIM 6.0: | EC000261 |
| ETIM 7.0: | EC000261 |
| eClass 9.0: | 27-18-01-01 |
| eClass 9.1: | 27-18-92-90 |
| eClass 10.0: | 27-18-01-01 |
| UNSPSC: | 31-26-15-02 |
| ROHS: | Conform |
