Produkt
Weidmueller
0534200000
H10,0/22 EB
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

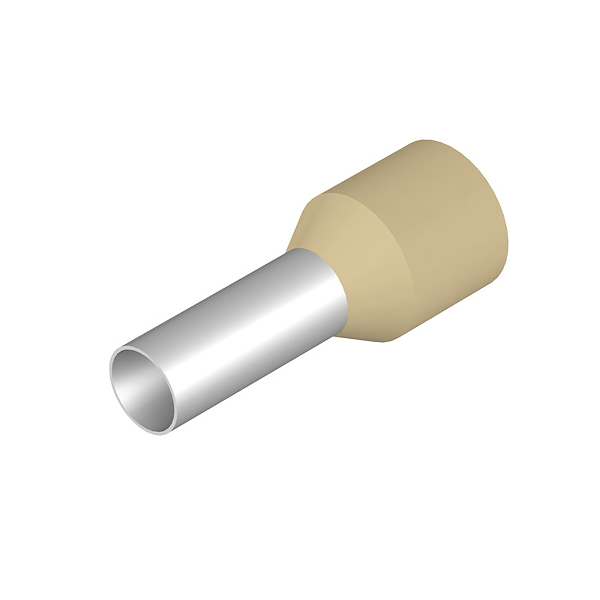

Weidmueller 0534200000
H10,0/22 EB
Wire-end ferrule, insulated, 15 mm, 12 mm, Ivory
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | H10,0/22 EB |
| Order No.: | 0534200000 |
| Version: | Wire-end ferrule, insulated, 15 mm, 12 mm, Ivory |
| GTIN (EAN): | 4008190033460 |
| Qty.: | 100 pc(s). |
| Packaging: | loose |
| Net weight: | 0.5 g |
| Version: | insulated |
| Collar diameter (D2): | 7.6 mm |
| Colour code: | Weidmüller |
| Conductor cross-section: | 10 mm² |
| Contact surface diameter (D1): | 4.5 mm |
| Contact surface length (L2): | 12 mm |
| L1 in mm: | 22 mm |
| Metal sleeve thickness (S1): | 0.2 mm |
| Military designation: | T 20A 025 A |
| Plastic collar thickness (S2): | 0.4 mm |
| Stripping length: | 15 mm |
| Wire connection cross section AWG, max.: | AWG 8 |
| ETIM 6.0: | EC000005 |
| ETIM 7.0: | EC000005 |
| eClass 9.0: | 27-40-02-01 |
| eClass 9.1: | 27-40-02-01 |
| eClass 10.0: | 27-40-02-01 |
| UNSPSC: | 31-16-31-02 |
| ROHS: | Conform |
| Type: | H10,0/22 EB |
| Order No.: | 0534200000 |
| Version: | Wire-end ferrule, insulated, 15 mm, 12 mm, Ivory |
| GTIN (EAN): | 4008190033460 |
| Qty.: | 100 pc(s). |
| Packaging: | loose |
| Net weight: | 0.5 g |
| Version: | insulated |
| Collar diameter (D2): | 7.6 mm |
| Colour code: | Weidmüller |
| Conductor cross-section: | 10 mm² |
| Contact surface diameter (D1): | 4.5 mm |
| Contact surface length (L2): | 12 mm |
| L1 in mm: | 22 mm |
| Metal sleeve thickness (S1): | 0.2 mm |
| Military designation: | T 20A 025 A |
| Plastic collar thickness (S2): | 0.4 mm |
| Stripping length: | 15 mm |
| Wire connection cross section AWG, max.: | AWG 8 |
| ETIM 6.0: | EC000005 |
| ETIM 7.0: | EC000005 |
| eClass 9.0: | 27-40-02-01 |
| eClass 9.1: | 27-40-02-01 |
| eClass 10.0: | 27-40-02-01 |
| UNSPSC: | 31-16-31-02 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
