Produkt
Weidmueller
0448360000
ST 5/EN
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

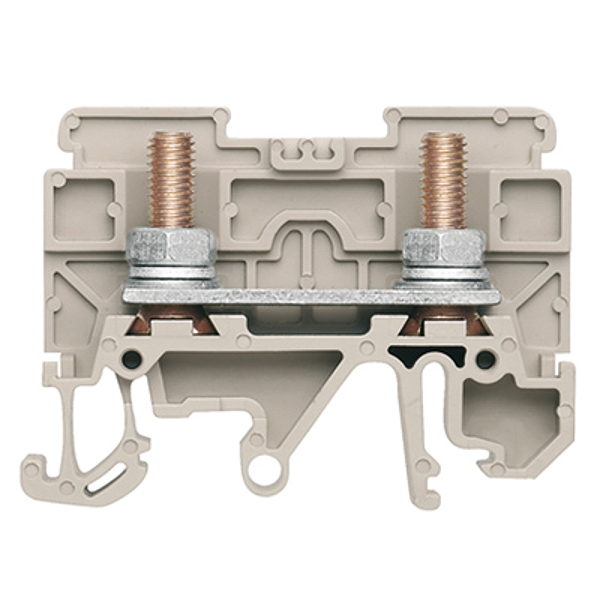

Weidmueller 0448360000
ST 5/EN
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 16 mm², Screw connection
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | ST 5/EN |
| Order No.: | 0448360000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 16 mm², Screw connection |
| GTIN (EAN): | 4032248124978 |
| Qty.: | 20 pc(s). |
| Width: | 16.4 mm |
| Width (inches): | 0.646 inch |
| Height: | 54.5 mm |
| Height (inches): | 2.146 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Weight: | 19.9 g |
| Net weight: | 22.64 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32, TS 35 |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | Clamped |
| Connection direction: | on side |
| Stud size for spade connection: | M 5 |
| Tightening torque, max.: | 3 Nm |
| Tightening torque, min.: | 2 Nm |
| Type of connection: | Screw connection |
| Rated cross-section: | 16 mm² |
| Rated voltage: | 800 V |
| Rated current: | 76 A |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 10 AWG |
| Conductor size Factory wiring min. (UR): | 12 AWG |
| Conductor size Field wiring max. (UR): | 10 AWG |
| Conductor size Field wiring min. (UR): | 12 AWG |
| Current size C (UR): | 65 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | ST 5/EN |
| Order No.: | 0448360000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 16 mm², Screw connection |
| GTIN (EAN): | 4032248124978 |
| Qty.: | 20 pc(s). |
| Width: | 16.4 mm |
| Width (inches): | 0.646 inch |
| Height: | 54.5 mm |
| Height (inches): | 2.146 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Weight: | 19.9 g |
| Net weight: | 22.64 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32, TS 35 |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | Clamped |
| Connection direction: | on side |
| Stud size for spade connection: | M 5 |
| Tightening torque, max.: | 3 Nm |
| Tightening torque, min.: | 2 Nm |
| Type of connection: | Screw connection |
| Rated cross-section: | 16 mm² |
| Rated voltage: | 800 V |
| Rated current: | 76 A |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 10 AWG |
| Conductor size Factory wiring min. (UR): | 12 AWG |
| Conductor size Field wiring max. (UR): | 10 AWG |
| Conductor size Field wiring min. (UR): | 12 AWG |
| Current size C (UR): | 65 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
