Produkt
Weidmueller
0442420000
AST 3 6.3/2.8 KRG
Poproś o ofertę

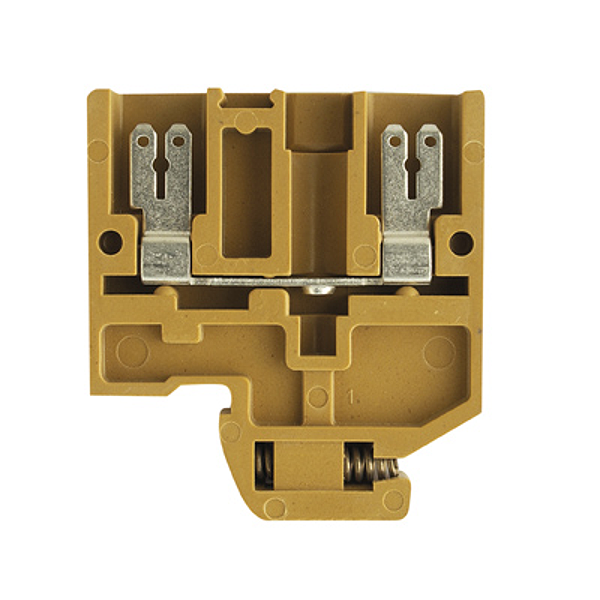

Prawa autorskie do obrazu: Weidmueller
Weidmueller 0442420000
AST 3 6.3/2.8 KRG
1021900000
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2020-12-31 |
| Type: | AST 3 6.3/2.8 KRG |
| Order No.: | 0442420000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Flat-blade connection, Direct mounting |
| GTIN (EAN): | 4008190002923 |
| Qty.: | 100 pc(s). |
| Width: | 6.5 mm |
| Width (inches): | 0.256 inch |
| Height: | 40 mm |
| Height (inches): | 1.575 inch |
| Depth: | 46 mm |
| Depth (inches): | 1.811 inch |
| Net weight: | 9.97 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | with cable-lug connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-142 |
| Current size C (CSA): | 16 A |
| Voltage size C (CSA): | 300 V |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Connection direction: | on side |
| Number of connections: | 2 |
| Type of connection: | Flat-blade connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Cable-lug connection: | Slotted |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 20 A |
| Current at maximum wires: | 20 A |
| Standards: | IEC 61210, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Current size C (UR): | 13 A |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2020-12-31 |
| Type: | AST 3 6.3/2.8 KRG |
| Order No.: | 0442420000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Flat-blade connection, Direct mounting |
| GTIN (EAN): | 4008190002923 |
| Qty.: | 100 pc(s). |
| Width: | 6.5 mm |
| Width (inches): | 0.256 inch |
| Height: | 40 mm |
| Height (inches): | 1.575 inch |
| Depth: | 46 mm |
| Depth (inches): | 1.811 inch |
| Net weight: | 9.97 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | with cable-lug connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-142 |
| Current size C (CSA): | 16 A |
| Voltage size C (CSA): | 300 V |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Connection direction: | on side |
| Number of connections: | 2 |
| Type of connection: | Flat-blade connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Cable-lug connection: | Slotted |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 20 A |
| Current at maximum wires: | 20 A |
| Standards: | IEC 61210, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Current size C (UR): | 13 A |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
