Produkt
Weidmueller
0266500000
ZB 35/M6X16
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

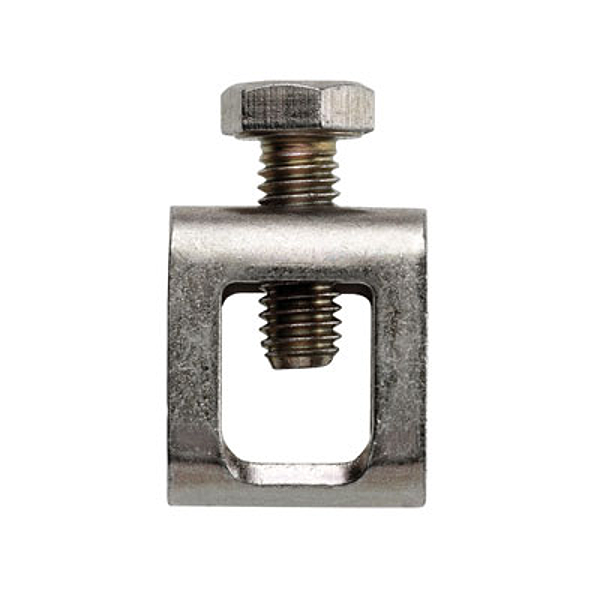

Weidmueller 0266500000
ZB 35/M6X16
Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, Feed-through (bushing)
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | ZB 35/M6X16 |
| Order No.: | 0266500000 |
| Version: | Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, Feed-through (bushing) |
| GTIN (EAN): | 4008190102814 |
| Qty.: | 20 pc(s). |
| Width: | 14 mm |
| Width (inches): | 0.551 inch |
| Height: | 18 mm |
| Height (inches): | 0.709 inch |
| Depth: | 34 mm |
| Depth (inches): | 1.339 inch |
| Net weight: | 17.6 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Material: | Steel |
| Colour: | silver |
| Certificate No. (ATEX): | DEMKO03ATEX136028U |
| Certificate No. (IECEX): | IECEXULD13.0005U |
| Wire cross section max. (ATEX): | 35 mm² |
| Wire cross section max. (IECEX): | 35 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | for busbar 10 x 3 mm |
| Installation advice: | Feed-through (bushing) |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 12400-237 |
| Wire cross section max. (CSA): | 2 AWG |
| Wire cross section min. (CSA): | 6 AWG |
| Clamping screw: | M 6 |
| Stripping length: | 19 mm |
| Tightening torque, min.: | 4.5 Nm |
| Type of connection: | Clamping yoke |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 16 mm² |
| TS 35 offset: | 39 mm |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 2 AWG |
| Conductor size Factory wiring min. (UR): | 6 AWG |
| Conductor size Field wiring max. (UR): | 2 AWG |
| Conductor size Field wiring min. (UR): | 6 AWG |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | ZB 35/M6X16 |
| Order No.: | 0266500000 |
| Version: | Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, Feed-through (bushing) |
| GTIN (EAN): | 4008190102814 |
| Qty.: | 20 pc(s). |
| Width: | 14 mm |
| Width (inches): | 0.551 inch |
| Height: | 18 mm |
| Height (inches): | 0.709 inch |
| Depth: | 34 mm |
| Depth (inches): | 1.339 inch |
| Net weight: | 17.6 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Material: | Steel |
| Colour: | silver |
| Certificate No. (ATEX): | DEMKO03ATEX136028U |
| Certificate No. (IECEX): | IECEXULD13.0005U |
| Wire cross section max. (ATEX): | 35 mm² |
| Wire cross section max. (IECEX): | 35 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | for busbar 10 x 3 mm |
| Installation advice: | Feed-through (bushing) |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 12400-237 |
| Wire cross section max. (CSA): | 2 AWG |
| Wire cross section min. (CSA): | 6 AWG |
| Clamping screw: | M 6 |
| Stripping length: | 19 mm |
| Tightening torque, min.: | 4.5 Nm |
| Type of connection: | Clamping yoke |
| Wire connection cross section, finely stranded, max.: | 35 mm² |
| Wire connection cross-section, finely stranded, min.: | 16 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 16 mm² |
| TS 35 offset: | 39 mm |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 2 AWG |
| Conductor size Factory wiring min. (UR): | 6 AWG |
| Conductor size Field wiring max. (UR): | 2 AWG |
| Conductor size Field wiring min. (UR): | 6 AWG |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
