Produkt
Weidmueller
0241860000
MF 2/12 2X2.8
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

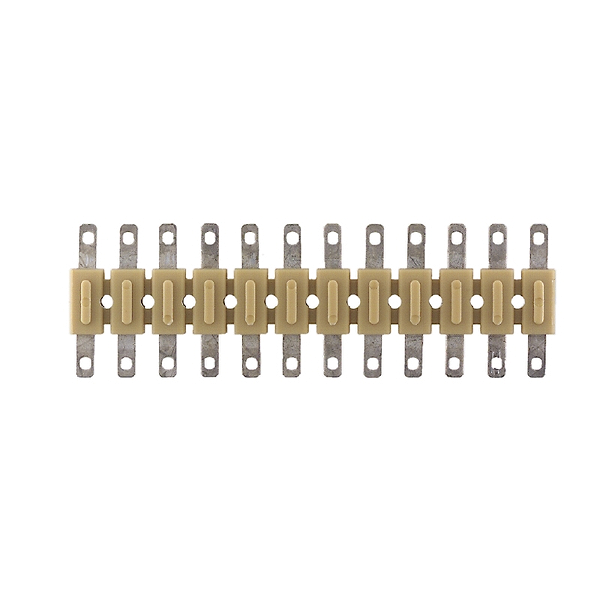

Weidmueller 0241860000
MF 2/12 2X2.8
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 1.5 mm², Screw connection, Direct mounting
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | MF 2/12 2X2.8 |
| Order No.: | 0241860000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 1.5 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190189082 |
| Qty.: | 100 pc(s). |
| Width: | 88.5 mm |
| Width (inches): | 3.484 inch |
| Height: | 1,350 mm |
| Height (inches): | 53.15 inch |
| Depth: | 6 mm |
| Depth (inches): | 0.236 inch |
| Weight: | 8.52 g |
| Net weight: | 8.26 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA, V-0 |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Connection direction: | on side |
| Stripping length: | 5 mm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 125 V |
| Rated current: | 24 A |
| Current at maximum wires: | 17.5 A |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| Rated impulse withstand voltage: | 1.5 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | MF 2/12 2X2.8 |
| Order No.: | 0241860000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 1.5 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190189082 |
| Qty.: | 100 pc(s). |
| Width: | 88.5 mm |
| Width (inches): | 3.484 inch |
| Height: | 1,350 mm |
| Height (inches): | 53.15 inch |
| Depth: | 6 mm |
| Depth (inches): | 0.236 inch |
| Weight: | 8.52 g |
| Net weight: | 8.26 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA, V-0 |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Connection direction: | on side |
| Stripping length: | 5 mm |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 1.5 mm² |
| Rated voltage: | 125 V |
| Rated current: | 24 A |
| Current at maximum wires: | 17.5 A |
| Volume resistance according to IEC 60947-7-x: | 1.83 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.56 W |
| Rated impulse withstand voltage: | 1.5 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
