Produkt

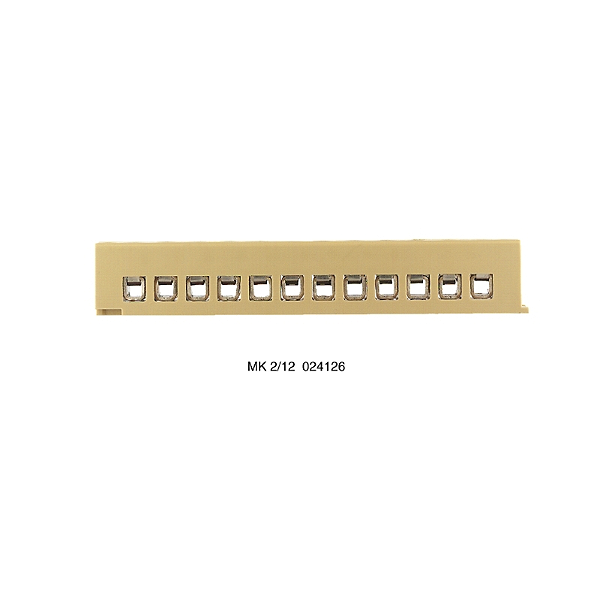

Article image 0241260000
Manufacturer logo

Weidmueller

0241260000

MK 2/12

Poproś o ofertę
Zamknij
Poproś o ofertę
Article image 0241260000
Prawa autorskie do obrazu: Weidmueller

Weidmueller 0241260000

MK 2/12

Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting

Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"

Opis

Parametry techniczne

Type: MK 2/12
Order No.: 0241260000
Version: Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
GTIN (EAN): 4008190026738
Qty.: 50 pc(s).
Width: 15 mm
Width (inches): 0.591 inch
Height: 86 mm
Height (inches): 3.386 inch
Depth: 15 mm
Depth (inches): 0.591 inch
Weight: 35.66 g
Net weight: 33.6 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 100 °C
Material: Polyamide 66
Colour: beige
UL 94 flammability rating: V-2
Version: For the mounting rails
End cover plate required: No
Explosion-tested version: No
Installation advice: Direct mounting
Type of mounting: Direct mounting
Certificate No. (CSA): 12400-161-162-163
Current size B (CSA): 10 A
Current size D (CSA): 10 A
Voltage size B (CSA): 300 V
Voltage size D (CSA): 300 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 24 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 4 mm²
Clamping range, min.: 0.2 mm²
Clamping screw: M 2.5
Connection cross-section, stranded, max.: 2.5 mm²
Connection cross-section, stranded, min.: 1.5 mm²
Connection direction: on side
Gauge to IEC 60947-1: A2
Number of connections: 24
Stripping length: 5 mm
Tightening torque, max.: 0.4 Nm
Torque level with DMS electric screwdriver: 1
Type of connection: Screw connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 24
Wire connection cross section, finely stranded, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 4 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Rated cross-section: 2.5 mm²
Rated voltage: 125 V
Rated current: 24 A
Current at maximum wires: 24 A
Standards: IEC 60947-7-1
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Power loss in accordance with IEC 60947-7-x: 0.77 W
Rated impulse withstand voltage: 2.5 kV
Pollution severity: 3
Certificate No. (UR): E60693
Conductor size Factory wiring max. (UR): 12 AWG
Conductor size Factory wiring min. (UR): 24 AWG
Conductor size Field wiring max. (UR): 12 AWG
Conductor size Field wiring min. (UR): 24 AWG
Current size B (UR): 10 A
Current size D (UR): 10 A
Voltage size B (UR): 300 V
Voltage size D (UR): 300 V
ETIM 6.0: EC001284
ETIM 7.0: EC001284
eClass 9.0: 27-14-11-06
eClass 9.1: 27-14-11-06
eClass 10.0: 27-14-11-06
UNSPSC: 30-21-18-11
ROHS: Conform
Type: MK 2/12
Order No.: 0241260000
Version: Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
GTIN (EAN): 4008190026738
Qty.: 50 pc(s).
Width: 15 mm
Width (inches): 0.591 inch
Height: 86 mm
Height (inches): 3.386 inch
Depth: 15 mm
Depth (inches): 0.591 inch
Weight: 35.66 g
Net weight: 33.6 g
Storage temperature, max.: 40 °C
Storage temperature, min.: 10 °C
Storage temperature: 10 °C...40 °C
Continuous operating temp., min.: -50 °C
Continuous operating temp., max.: 100 °C
Material: Polyamide 66
Colour: beige
UL 94 flammability rating: V-2
Version: For the mounting rails
End cover plate required: No
Explosion-tested version: No
Installation advice: Direct mounting
Type of mounting: Direct mounting
Certificate No. (CSA): 12400-161-162-163
Current size B (CSA): 10 A
Current size D (CSA): 10 A
Voltage size B (CSA): 300 V
Voltage size D (CSA): 300 V
Wire cross section max. (CSA): 12 AWG
Wire cross section min. (CSA): 24 AWG
Blade size: 0.6 x 3.5 mm
Clamping range, max.: 4 mm²
Clamping range, min.: 0.2 mm²
Clamping screw: M 2.5
Connection cross-section, stranded, max.: 2.5 mm²
Connection cross-section, stranded, min.: 1.5 mm²
Connection direction: on side
Gauge to IEC 60947-1: A2
Number of connections: 24
Stripping length: 5 mm
Tightening torque, max.: 0.4 Nm
Torque level with DMS electric screwdriver: 1
Type of connection: Screw connection
Wire connection cross section AWG, max.: AWG 12
Wire connection cross section AWG, min.: AWG 24
Wire connection cross section, finely stranded, max.: 2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
Wire connection cross-section, finely stranded, min.: 0.5 mm²
Wire connection cross-section, solid core, max.: 4 mm²
Wire connection cross-section, solid core, min.: 0.5 mm²
Rated cross-section: 2.5 mm²
Rated voltage: 125 V
Rated current: 24 A
Current at maximum wires: 24 A
Standards: IEC 60947-7-1
Volume resistance according to IEC 60947-7-x: 1.33 mΩ
Power loss in accordance with IEC 60947-7-x: 0.77 W
Rated impulse withstand voltage: 2.5 kV
Pollution severity: 3
Certificate No. (UR): E60693
Conductor size Factory wiring max. (UR): 12 AWG
Conductor size Factory wiring min. (UR): 24 AWG
Conductor size Field wiring max. (UR): 12 AWG
Conductor size Field wiring min. (UR): 24 AWG
Current size B (UR): 10 A
Current size D (UR): 10 A
Voltage size B (UR): 300 V
Voltage size D (UR): 300 V
ETIM 6.0: EC001284
ETIM 7.0: EC001284
eClass 9.0: 27-14-11-06
eClass 9.1: 27-14-11-06
eClass 10.0: 27-14-11-06
UNSPSC: 30-21-18-11
ROHS: Conform
