Produkt
Weidmueller
0211200000
AKE 4 MS
Poproś o ofertę

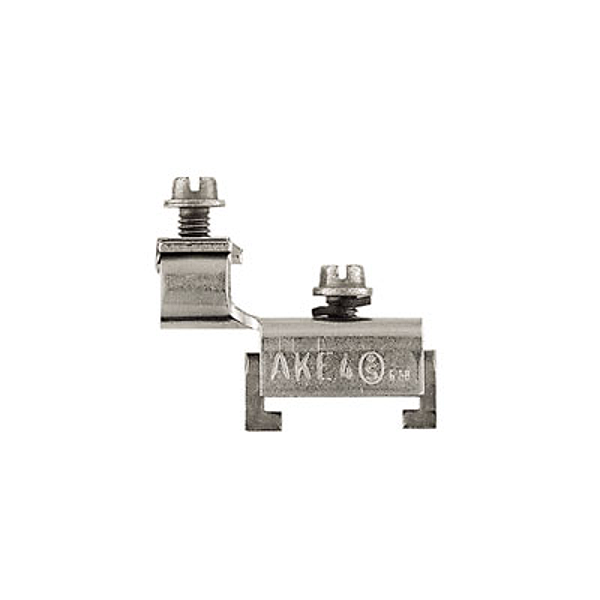

Prawa autorskie do obrazu: Weidmueller
Weidmueller 0211200000
AKE 4 MS
4008190074906
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | AKE 4 MS |
| Order No.: | 0211200000 |
| GTIN (EAN): | 4008190074906 |
| Qty.: | 50 pc(s). |
| Width: | 7 mm |
| Width (inches): | 0.276 inch |
| Height: | 32 mm |
| Height (inches): | 1.26 inch |
| Depth: | 30 mm |
| Depth (inches): | 1.181 inch |
| Net weight: | 10.68 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Version: | Screw connection, With PE connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 15 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | when screwed in |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 9 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 15 offset: | 16 mm |
| Rated short-time current: | 480 A (4 mm²) |
| Centre screw on PE terminals: | M 3.5 |
| Tightening torque range for fixing screw: | 0.8...1.6 Nm |
| PEN function: | No |
| Rated cross-section: | 4 mm² |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | AKE 4 MS |
| Order No.: | 0211200000 |
| GTIN (EAN): | 4008190074906 |
| Qty.: | 50 pc(s). |
| Width: | 7 mm |
| Width (inches): | 0.276 inch |
| Height: | 32 mm |
| Height (inches): | 1.26 inch |
| Depth: | 30 mm |
| Depth (inches): | 1.181 inch |
| Net weight: | 10.68 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Version: | Screw connection, With PE connection |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 15 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | when screwed in |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 9 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 15 offset: | 16 mm |
| Rated short-time current: | 480 A (4 mm²) |
| Centre screw on PE terminals: | M 3.5 |
| Tightening torque range for fixing screw: | 0.8...1.6 Nm |
| PEN function: | No |
| Rated cross-section: | 4 mm² |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
