Weidmueller
0206820000
SAKS 2
Poproś o ofertę

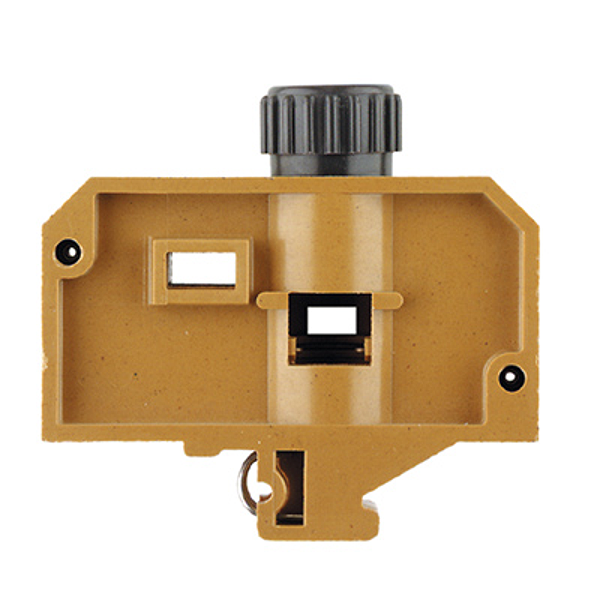

Prawa autorskie do obrazu: Weidmueller
Weidmueller 0206820000
SAKS 2
4008190048327
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SAKS 2 |
| Order No.: | 0206820000 |
| GTIN (EAN): | 4008190048327 |
| Qty.: | 20 pc(s). |
| Width: | 27.6 mm |
| Width (inches): | 1.087 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 75 mm |
| Depth (inches): | 2.953 inch |
| Net weight: | 112.3 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Screw connection, Fuse cartridge, One end without connector |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-194 |
| Current size B (CSA): | 25 A |
| Current size C (CSA): | 25 A |
| Current size D (CSA): | 5 A |
| Voltage size B (CSA): | 600 V |
| Voltage size C (CSA): | 600 V |
| Voltage size D (CSA): | 600 V |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 22 AWG |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B6 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 2.4 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Torque level with DMS electric screwdriver: | 4 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Operating voltage for display, max.: | 500 V |
| Type of voltage for indicator: | AC/DC |
| Cartridge fuse: | E16 |
| Display: | Without LED |
| Fuse holder (cartridge holder): | for screw fixing |
| Operating voltage, max.: | 500 V |
| Type of voltage for indicator: | AC/DC |
| Rated cross-section: | 10 mm² |
| Rated voltage: | 500 V |
| Rated current: | 10 A |
| Current at maximum wires: | 10 A |
| Standards: | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x: | 0.56 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.82 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
