Produkt
Weidmueller
0190160000
EK 16/35
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

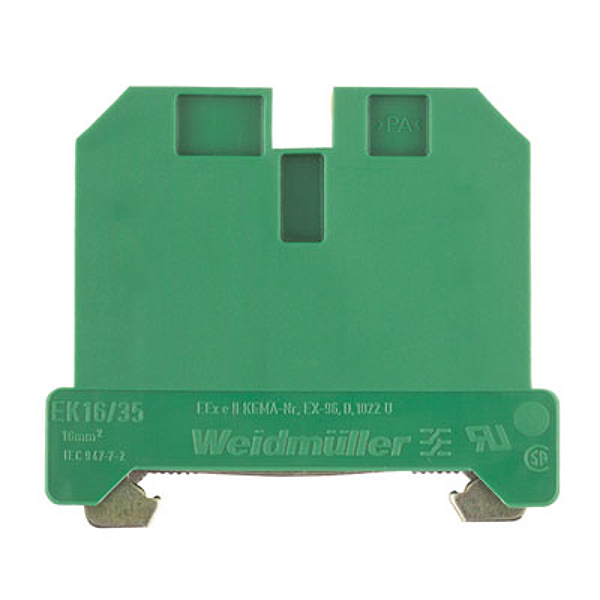

Weidmueller 0190160000
EK 16/35
SAK Series, PE terminal, Rated cross-section: 16 mm², Screw connection, Green/yellow
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | EK 16/35 |
| Order No.: | 0190160000 |
| Version: | SAK Series, PE terminal, Rated cross-section: 16 mm², Screw connection, Green/yellow |
| GTIN (EAN): | 4008190184131 |
| Qty.: | 50 pc(s). |
| Width: | 12 mm |
| Width (inches): | 0.472 inch |
| Height: | 56 mm |
| Height (inches): | 2.205 inch |
| Depth: | 50 mm |
| Depth (inches): | 1.969 inch |
| Net weight: | 41.86 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | PA 66 |
| Colour: | yellow, green |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, With PE connection, in closed state |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | Yes |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 12400-223 |
| Wire cross section max. (CSA): | 10 AWG |
| Wire cross section min. (CSA): | 16 AWG |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 4 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 16 mm² |
| Connection cross-section, stranded, min.: | 4 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B6 |
| Number of connections: | 2 |
| Stripping length: | 16 mm |
| Tightening torque, max.: | 2.2 Nm |
| Tightening torque, min.: | 2 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 6 |
| Wire connection cross section AWG, min.: | AWG 12 |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 4 mm² |
| Wire connection cross-section, finely stranded, min.: | 4 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 4 mm² |
| Rated short-time current: | 1920 A (16 mm²) |
| Centre screw on PE terminals: | M 3 |
| Tightening torque range for fixing screw: | 0.5...1.0 Nm |
| PEN function: | Yes |
| Rated cross-section: | 16 mm² |
| Rated voltage to adjoining terminal: | 800 V |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage to adjacent terminal: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 6 AWG |
| Conductor size Factory wiring min. (UR): | 10 AWG |
| Conductor size Field wiring max. (UR): | 6 AWG |
| Conductor size Field wiring min. (UR): | 10 AWG |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | EK 16/35 |
| Order No.: | 0190160000 |
| Version: | SAK Series, PE terminal, Rated cross-section: 16 mm², Screw connection, Green/yellow |
| GTIN (EAN): | 4008190184131 |
| Qty.: | 50 pc(s). |
| Width: | 12 mm |
| Width (inches): | 0.472 inch |
| Height: | 56 mm |
| Height (inches): | 2.205 inch |
| Depth: | 50 mm |
| Depth (inches): | 1.969 inch |
| Net weight: | 41.86 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | PA 66 |
| Colour: | yellow, green |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, With PE connection, in closed state |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | Yes |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | Yes |
| PEN function: | Yes |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 12400-223 |
| Wire cross section max. (CSA): | 10 AWG |
| Wire cross section min. (CSA): | 16 AWG |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 4 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 16 mm² |
| Connection cross-section, stranded, min.: | 4 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B6 |
| Number of connections: | 2 |
| Stripping length: | 16 mm |
| Tightening torque, max.: | 2.2 Nm |
| Tightening torque, min.: | 2 Nm |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 6 |
| Wire connection cross section AWG, min.: | AWG 12 |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 4 mm² |
| Wire connection cross-section, finely stranded, min.: | 4 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 4 mm² |
| Rated short-time current: | 1920 A (16 mm²) |
| Centre screw on PE terminals: | M 3 |
| Tightening torque range for fixing screw: | 0.5...1.0 Nm |
| PEN function: | Yes |
| Rated cross-section: | 16 mm² |
| Rated voltage to adjoining terminal: | 800 V |
| Standards: | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage to adjacent terminal: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 6 AWG |
| Conductor size Factory wiring min. (UR): | 10 AWG |
| Conductor size Field wiring max. (UR): | 6 AWG |
| Conductor size Field wiring min. (UR): | 10 AWG |
| ETIM 6.0: | EC000901 |
| ETIM 7.0: | EC000901 |
| eClass 9.0: | 27-14-11-41 |
| eClass 9.1: | 27-14-11-41 |
| eClass 10.0: | 27-14-11-41 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
