Weidmueller
0189400000
CLI MH 110 HSTR
Poproś o ofertę

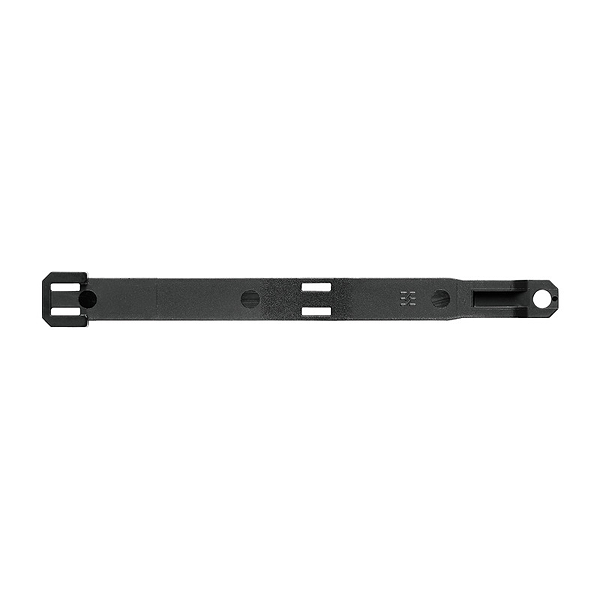

Prawa autorskie do obrazu: Weidmueller
Weidmueller 0189400000
CLI MH 110 HSTR
CableLine, Accessories, 10 - 317 mm, 110 x 11.3 mm, black
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | CLI MH 110 HSTR |
| Order No.: | 0189400000 |
| Version: | CableLine, Accessories, 10 - 317 mm, 110 x 11.3 mm, black |
| GTIN (EAN): | 4008190144784 |
| Qty.: | 100 pc(s). |
| Width: | 11.3 mm |
| Width (inches): | 0.445 inch |
| Height: | 110 mm |
| Height (inches): | 4.331 inch |
| Depth: | 3 mm |
| Depth (inches): | 0.118 inch |
| Net weight: | 1.29 g |
| Colour: | black |
| Material: | Polyamide 66 |
| Material colour according to resistance code: | 0 |
| Operating temperature range: | -30...100 °C |
| Recommended industries: | Process, Machinery |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-0 |
| Version: | halogen-free |
| Width: | 11.3 mm |
| Conductor O.D.: | 10 - 317 mm |
| Conductor O.D., max.: | 317 mm |
| Conductor O.D., min.: | 10 mm |
| Conductor cross-section, max.: | 500 mm² |
| Conductor cross-section, min.: | 16 mm² |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-06-29 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
| Type: | CLI MH 110 HSTR |
| Order No.: | 0189400000 |
| Version: | CableLine, Accessories, 10 - 317 mm, 110 x 11.3 mm, black |
| GTIN (EAN): | 4008190144784 |
| Qty.: | 100 pc(s). |
| Width: | 11.3 mm |
| Width (inches): | 0.445 inch |
| Height: | 110 mm |
| Height (inches): | 4.331 inch |
| Depth: | 3 mm |
| Depth (inches): | 0.118 inch |
| Net weight: | 1.29 g |
| Colour: | black |
| Material: | Polyamide 66 |
| Material colour according to resistance code: | 0 |
| Operating temperature range: | -30...100 °C |
| Recommended industries: | Process, Machinery |
| Type of printing: | neutral |
| UL 94 flammability rating: | V-0 |
| Version: | halogen-free |
| Width: | 11.3 mm |
| Conductor O.D.: | 10 - 317 mm |
| Conductor O.D., max.: | 317 mm |
| Conductor O.D., min.: | 10 mm |
| Conductor cross-section, max.: | 500 mm² |
| Conductor cross-section, min.: | 16 mm² |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-06-29 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 44-12-17-08 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
