Produkt
Weidmueller
0185220000
SAKG 40 II/GW
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller

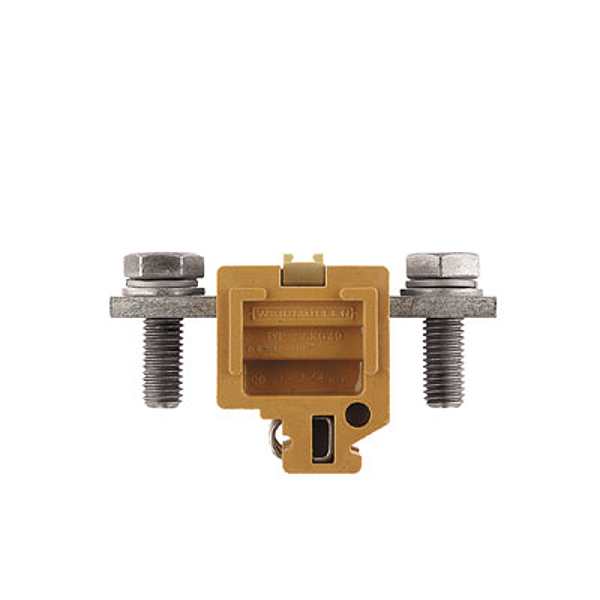

Weidmueller 0185220000
SAKG 40 II/GW
SAK Series, Feed-through terminal, Rated cross-section: 95 mm², Threaded stud connection, medium yellow, Direct mounting
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SAKG 40 II/GW |
| Order No.: | 0185220000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 95 mm², Threaded stud connection, medium yellow, Direct mounting |
| GTIN (EAN): | 4008190088408 |
| Qty.: | 10 pc(s). |
| Width: | 46 mm |
| Width (inches): | 1.811 inch |
| Height: | 90 mm |
| Height (inches): | 3.543 inch |
| Depth: | 53 mm |
| Depth (inches): | 2.087 inch |
| Weight: | 217.9 g |
| Net weight: | 212.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Stud terminal |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-119 |
| Current size C (CSA): | 250 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 0000 AWG |
| Wire cross section min. (CSA): | 00 AWG |
| Clamping range, max.: | 95 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 10 |
| Connection direction: | on side |
| Number of connections: | 1 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| Wire connection cross section AWG, max.: | AWG 4/0 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Rated cross-section: | 95 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 232 A |
| Current at maximum wires: | 232 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.14 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 7.42 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | SAKG 40 II/GW |
| Order No.: | 0185220000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 95 mm², Threaded stud connection, medium yellow, Direct mounting |
| GTIN (EAN): | 4008190088408 |
| Qty.: | 10 pc(s). |
| Width: | 46 mm |
| Width (inches): | 1.811 inch |
| Height: | 90 mm |
| Height (inches): | 3.543 inch |
| Depth: | 53 mm |
| Depth (inches): | 2.087 inch |
| Weight: | 217.9 g |
| Net weight: | 212.6 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Stud terminal |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-119 |
| Current size C (CSA): | 250 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 0000 AWG |
| Wire cross section min. (CSA): | 00 AWG |
| Clamping range, max.: | 95 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 10 |
| Connection direction: | on side |
| Number of connections: | 1 |
| Tightening torque, max.: | 20 Nm |
| Tightening torque, min.: | 10 Nm |
| Type of connection: | Threaded stud connection |
| Wire connection cross section AWG, max.: | AWG 4/0 |
| Wire connection cross section AWG, min.: | AWG 20 |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Rated cross-section: | 95 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 232 A |
| Current at maximum wires: | 232 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.14 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 7.42 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
