Produkt
Weidmueller
0169300000
TS 32X15 2M/AL/BK
Poproś o ofertę
Prawa autorskie do obrazu: Weidmueller
Weidmueller 0169300000
TS 32X15 2M/AL/BK

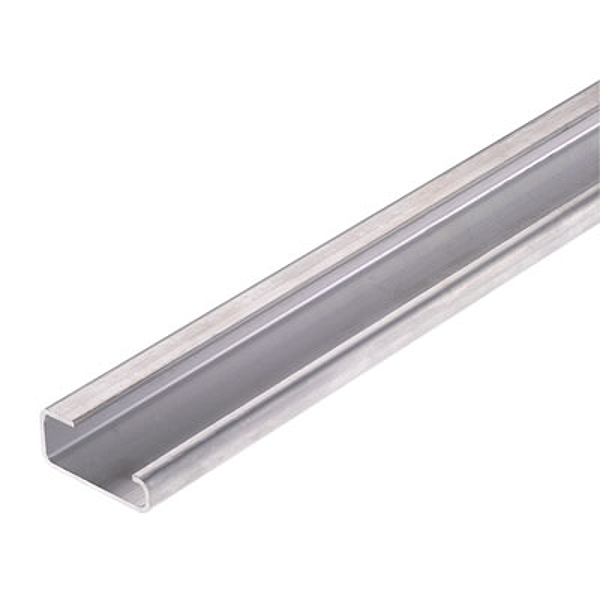

Rail, TS 32, without slot, Aluminium, untreated
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | TS 32X15 2M/AL/BK |
| Order No.: | 0169300000 |
| Version: | Rail, TS 32, without slot, Aluminium, untreated |
| GTIN (EAN): | 4008190105167 |
| Qty.: | 2 m |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 33 mm |
| Height (inches): | 1.299 inch |
| Depth: | 15 mm |
| Depth (inches): | 0.591 inch |
| Net weight: | 235.5 g |
| Permitted thermal current for PEN function, max.: | 192 A |
| Short circuit strength corresponds to E-Cu wire: | 70 mm² |
| Short-time withstand current according to IEC 60947-7-2: | 8.4 kA/1s |
| Thickness: | 1.5 mm |
| ETIM 6.0: | EC001285 |
| ETIM 7.0: | EC001285 |
| eClass 9.0: | 27-40-06-02 |
| eClass 9.1: | 27-40-06-02 |
| eClass 10.0: | 27-40-06-02 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | TS 32X15 2M/AL/BK |
| Order No.: | 0169300000 |
| Version: | Rail, TS 32, without slot, Aluminium, untreated |
| GTIN (EAN): | 4008190105167 |
| Qty.: | 2 m |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 33 mm |
| Height (inches): | 1.299 inch |
| Depth: | 15 mm |
| Depth (inches): | 0.591 inch |
| Net weight: | 235.5 g |
| Permitted thermal current for PEN function, max.: | 192 A |
| Short circuit strength corresponds to E-Cu wire: | 70 mm² |
| Short-time withstand current according to IEC 60947-7-2: | 8.4 kA/1s |
| Thickness: | 1.5 mm |
| ETIM 6.0: | EC001285 |
| ETIM 7.0: | EC001285 |
| eClass 9.0: | 27-40-06-02 |
| eClass 9.1: | 27-40-06-02 |
| eClass 10.0: | 27-40-06-02 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
