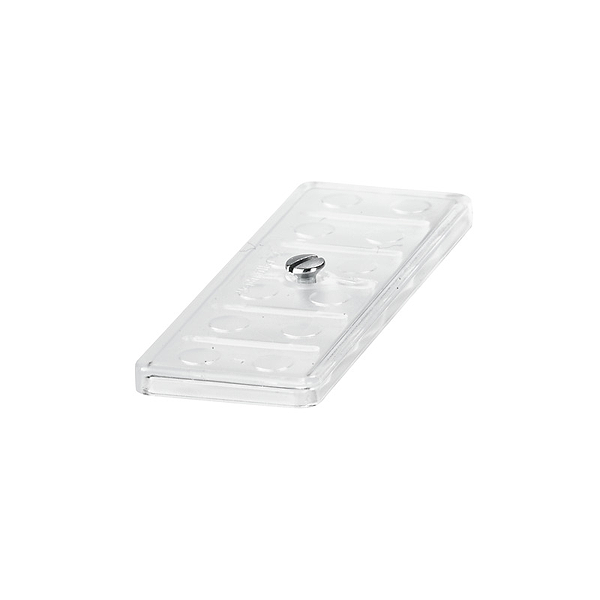

Weidmueller 0140800000
D6 KS6 TP
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: Screw connection, Direct mounting
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | D6 KS6 TP |
| Order No.: | 0140800000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: Screw connection, Direct mounting |
| GTIN (EAN): | 4008190162290 |
| Qty.: | 50 pc(s). |
| Width: | 72 mm |
| Width (inches): | 2.835 inch |
| Height: | 9,000 mm |
| Height (inches): | 354.33 inch |
| Depth: | 6.8 mm |
| Depth (inches): | 0.268 inch |
| Net weight: | 4.72 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | Transparent |
| UL 94 flammability rating: | V-2 |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Connection direction: | on side |
| Type of connection: | Screw connection |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | D6 KS6 TP |
| Order No.: | 0140800000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: Screw connection, Direct mounting |
| GTIN (EAN): | 4008190162290 |
| Qty.: | 50 pc(s). |
| Width: | 72 mm |
| Width (inches): | 2.835 inch |
| Height: | 9,000 mm |
| Height (inches): | 354.33 inch |
| Depth: | 6.8 mm |
| Depth (inches): | 0.268 inch |
| Net weight: | 4.72 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | Transparent |
| UL 94 flammability rating: | V-2 |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Connection direction: | on side |
| Type of connection: | Screw connection |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
