Produkt
Weidmueller
0108560000
SAK 2.5 SW 1X1
Poproś o ofertę

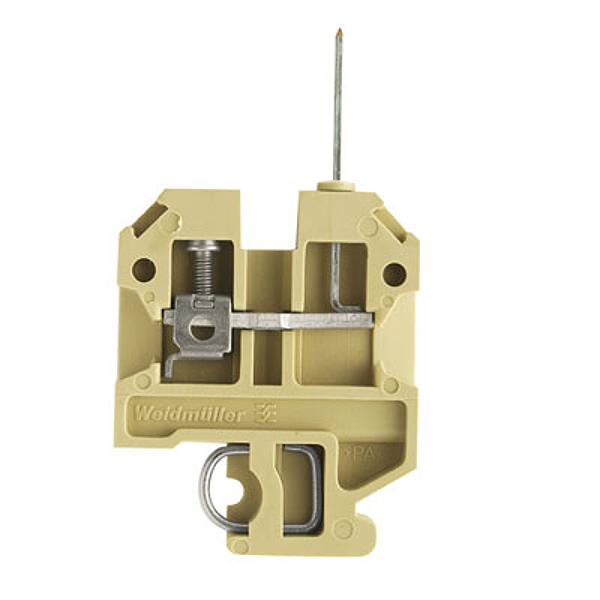

Prawa autorskie do obrazu: Weidmueller
Weidmueller 0108560000
SAK 2.5 SW 1X1
1552790000
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2020-12-31 |
| Type: | SAK 2.5 SW 1X1 |
| Order No.: | 0108560000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, Busbar |
| GTIN (EAN): | 4008190184032 |
| Qty.: | 100 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 36.5 mm |
| Height (inches): | 1.437 inch |
| Depth: | 67 mm |
| Depth (inches): | 2.638 inch |
| Weight: | 8.63 g |
| Net weight: | 8.06 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, With elbow connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| Explosion-tested version: | No |
| Installation advice: | Busbar |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.7 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Pin: | 1 x 1 |
| Pin arrangement: | top |
| Pin on side: | right |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 8 A |
| Current at maximum wires: | 8 A |
| Standards: | IEC 61210, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2020-12-31 |
| Type: | SAK 2.5 SW 1X1 |
| Order No.: | 0108560000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, Busbar |
| GTIN (EAN): | 4008190184032 |
| Qty.: | 100 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 36.5 mm |
| Height (inches): | 1.437 inch |
| Depth: | 67 mm |
| Depth (inches): | 2.638 inch |
| Weight: | 8.63 g |
| Net weight: | 8.06 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, With elbow connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| Explosion-tested version: | No |
| Installation advice: | Busbar |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.7 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Twin wire-end ferrules, max.: | 1.5 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Pin: | 1 x 1 |
| Pin arrangement: | top |
| Pin on side: | right |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 250 V |
| Rated current: | 8 A |
| Current at maximum wires: | 8 A |
| Standards: | IEC 61210, In accordance with IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 4 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
