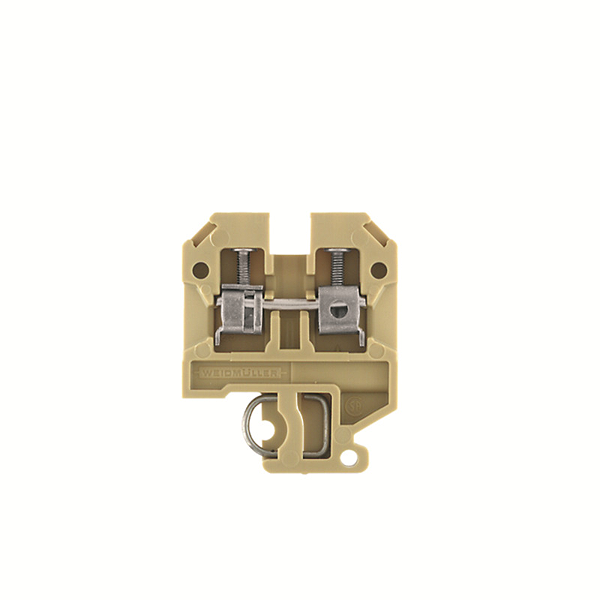

Weidmueller 0107160000
SAK 2.5/TC AL
SAK Series, Thermocouple terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Type: | SAK 2.5/TC AL |
| Order No.: | 0107160000 |
| Version: | SAK Series, Thermocouple terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190188726 |
| Qty.: | 100 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 36.5 mm |
| Height (inches): | 1.437 inch |
| Depth: | 46.5 mm |
| Depth (inches): | 1.831 inch |
| Net weight: | 8.57 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, Thermocouple, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 4 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping screw: | M 2.5 |
| Connection direction: | on side |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Type of connection: | Screw connection |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Standards: | IEC 60584, IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000904 |
| ETIM 7.0: | EC000904 |
| eClass 9.0: | 27-14-11-42 |
| eClass 9.1: | 27-14-11-42 |
| eClass 10.0: | 27-14-11-42 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | SAK 2.5/TC AL |
| Order No.: | 0107160000 |
| Version: | SAK Series, Thermocouple terminal, Rated cross-section: 2.5 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190188726 |
| Qty.: | 100 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 36.5 mm |
| Height (inches): | 1.437 inch |
| Depth: | 46.5 mm |
| Depth (inches): | 1.831 inch |
| Net weight: | 8.57 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, Thermocouple, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 4 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 2.5 mm² |
| Clamping screw: | M 2.5 |
| Connection direction: | on side |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Type of connection: | Screw connection |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Standards: | IEC 60584, IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000904 |
| ETIM 7.0: | EC000904 |
| eClass 9.0: | 27-14-11-42 |
| eClass 9.1: | 27-14-11-42 |
| eClass 10.0: | 27-14-11-42 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
