Produkt
Weidmueller
0105820000
SAKT 1/35/DU1
Poproś o ofertę

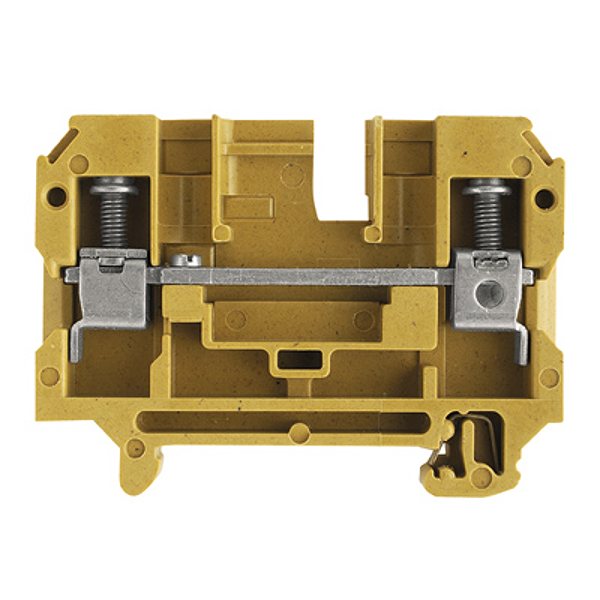

Prawa autorskie do obrazu: Weidmueller
Weidmueller 0105820000
SAKT 1/35/DU1
SAKT 1/35/DU1
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Available until: | 2022-12-31 |
| Type: | SAKT 1/35/DU1 |
| Order No.: | 0105820000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection, medium yellow, Direct mounting |
| GTIN (EAN): | 4008190044176 |
| Qty.: | 50 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 65 mm |
| Height (inches): | 2.559 inch |
| Depth: | 52.5 mm |
| Depth (inches): | 2.067 inch |
| Net weight: | 23.36 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-198 |
| Current size C (CSA): | 25 A |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 6 mm² |
| Blade size: | 4.0 x 0.8 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 400 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size C (UR): | 25 A |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Available until: | 2022-12-31 |
| Type: | SAKT 1/35/DU1 |
| Order No.: | 0105820000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection, medium yellow, Direct mounting |
| GTIN (EAN): | 4008190044176 |
| Qty.: | 50 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 65 mm |
| Height (inches): | 2.559 inch |
| Depth: | 52.5 mm |
| Depth (inches): | 2.067 inch |
| Net weight: | 23.36 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-198 |
| Current size C (CSA): | 25 A |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 6 mm² |
| Blade size: | 4.0 x 0.8 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.13 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 10 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 8 |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 400 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 26 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size C (UR): | 25 A |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
