Wago 850-834

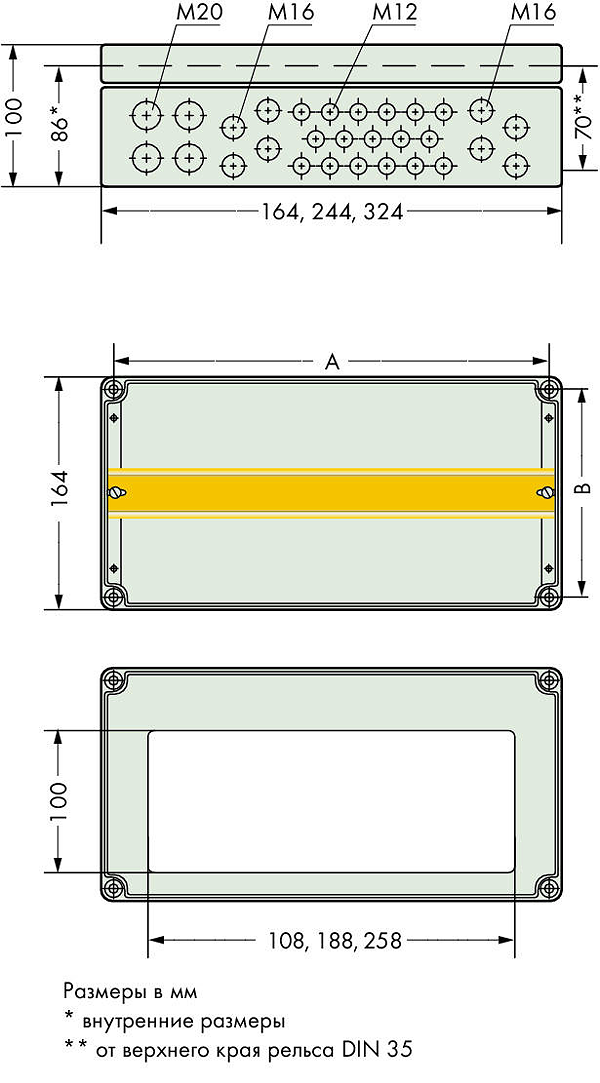

IP65 enclosure; Polyester (RAL 7032); WxHxD (164x100x164 mm); 9 x M12, 4 x M20

Opis

Polyester enclosure, glass fiber-reinforced, halogen-free, as V0 version (self-extinguishing). Polyamide cover screws, captive. Inspection glass, incl. attachment panel for customer marking (marking not included in scope of supply). Mounting holes (4 mounting channels located outside the sealed enclosure). Metric cable grips (polyamide PA 6),, incl. filler plugs;. M12 cable grip, 3–6 mm cable diameter ; M16 cable grip, 5–9 mm cable diameter; M20 cable grip, 9–13 mm cable diameter. 1 x DIN 35/7.5 rail. Oil and petroleum-resistant neoprene round chord seal. Pebble gray, RAL 7032
