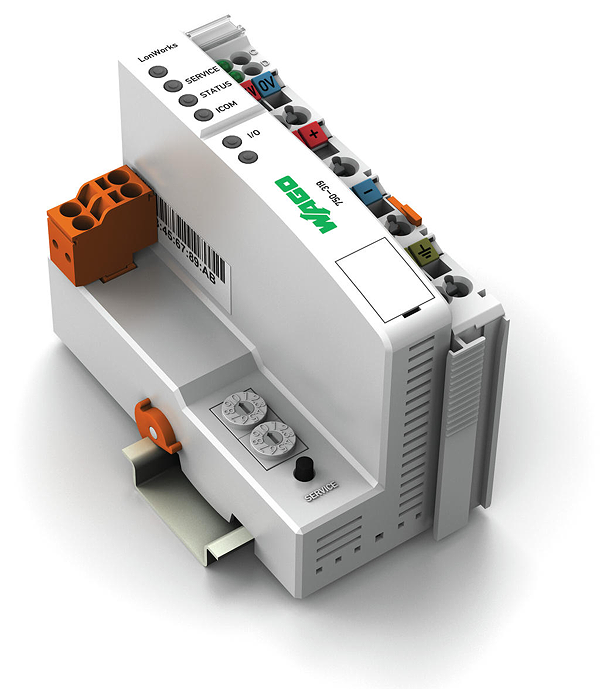

Wago 750-319

Fieldbus Coupler LonWorks®; light gray

Opis

WAGO‐TOPLON. PRIO (Programmable Remote I/O) forms the interface between the fieldbus coupler I/O and the LON, network. Up to 248 digital or 124 analog inputs and outputs can be processed. The module values can be adapted to any type of standard network variable (SNVTs). A maximum of 52 network variables are available in different NVI/NVO combinations: 0/52; 20/32; 26/26; 32/20; 52/0. IF (Installation Functions) contains the completed applications in any combination (e.g., stairway lighting, control and deactivation of exterior brightness, step dimmers, blind control). Up to 48 digital inputs and outputs can be processed. 48 SNVT_switch network variables are available for this.
