Pulsotronic 08310002506
KJ15-M30EN80-DPS-HT180-X0240
Inductive sensor high temperature
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Pliki do pobrania
Parametry techniczne
| Name: | KJ15-M30EN80-DPS-HT180-X0240 |
| Order number: | 08310002506 |
| Switching distance: | 15 mm |
| Mounting: | non shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | Cable |
| Connection diagramm: | |

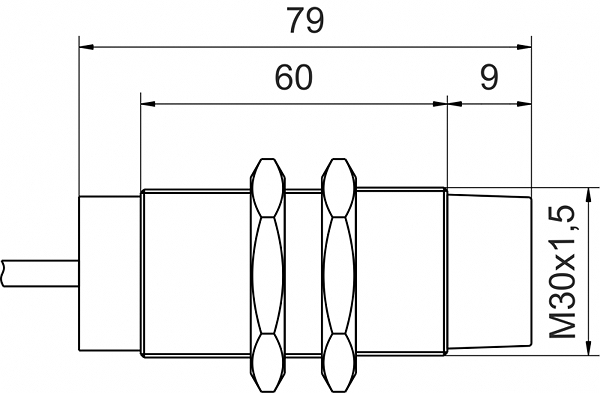

| Dimension (in mm): | fine-pitch thread M30 x 80 |
| Special features: | high temperature sensor up to 180°C Connecting Cable PTFE |
| Operating voltage: | 10 - 35 V DC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2 V |
| Max. load current: | 150 mA |
| No load current: | ≤ 15 mA |
| Leakage current: | ≤ 250 µA |
| Switching frequency: | 200 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 180 ° C |
| Temperature drift: | +/- 15 % |
| Repeat accuracy: | ≤ 3 % |
| Time delay: | 2,5 ms |
| Short-circuit proof: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP65 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Stainless steel V2A |
| Material active face: | VECTRA |
| Cable length: | 2 m |
| Utilisation category: | DC 13 |
| Cable material: | PTFE |
| Conductor diameter: | 1,2 mm mm mm |
| Nominal operating voltage: | 24 V DC |
| Cable cross: | 3x0.22 mm² |
| MTTF acc. to SIEMENS 29500: | 185y |
| Errors and omissions exceptet: |
