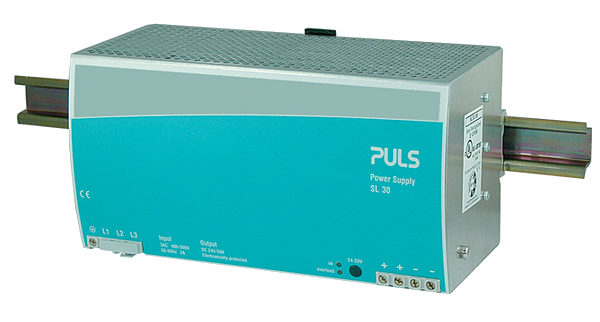

SL30.300
DIN-rail power supplies for 3-phase systems
400-500V Wide-range input. Efficiency up to 92,5%. Full output power between 0 and +60°C
AC-Input Voltage: | AC 400-500V |
DC-Input Voltage: | DC 600V (-25%/+37%) |
EN61000-3-2(PFC-Norm): | fulfilled |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24-28V |
Output Current Range: | 30-25.7A |
Output Current: | 25.7A at 28V 30A at 24V |
Output Power: | 720W |
Size (WxHxD): | 240mm x 124mm x 112mm |
Weight per Piece (excluding packing): | 2000g |
Mounting Method: | DIN-Rail |
Connection method: | Screw terminals |
