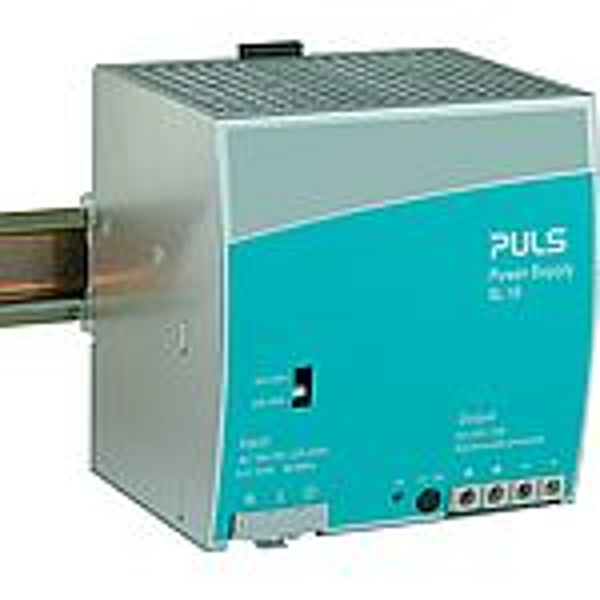

SL10.100
DIN-rail power supplies for 1-phase systems
115 / 230V Switchable input. Efficiency up to 90%. 20% Power reserves for loads with a higher short-term power requirement. Full output power between 0 and +60°C
AC-Input Voltage: | AC 100-120/210-240V |
DC-Input Voltage: | |
EN61000-3-2(PFC-Norm): | not fulfilled |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24-28V |
Output Current Range: | 10-8.6A |
Output Current: | 8.6A at 28V 10A at 24V |
Output Power: | 240W |
max. Ripple and Noise Voltage: | 30mVpp |
Size (WxHxD): | 120mm x 124mm x 102mm |
Weight per Piece (excluding packing): | 980g |
Mounting Method: | DIN-Rail |
Connection method: | Screw terminals |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
