774135

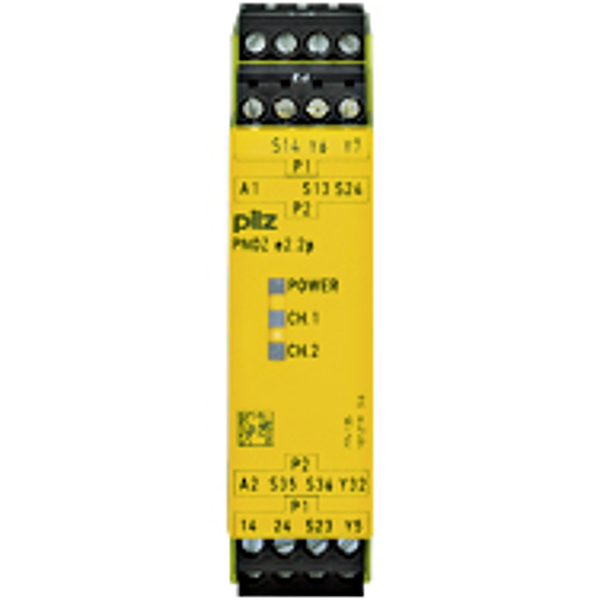

PNOZ e2.2p 24VDC 2so
Safety relay (standalone) Inputs: Requirement class IIIA in accordance, with EN 574 Outputs: 2 safety outputs, 1 auxiliary output in, semiconductor technology UB 24 V DC, width: 22.5mm, plug-in terminals, of screw type. Automatic start, connecting several devices.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV |
Application options:: | Two-hand monitoring Type III A |
Operating modes:: | Automatic reset, Dual-channel, Detection of shorts across contacts, Self test, with AND input, With OR input |
Product standard:: | EN 60947-5-1 |
Standards:: | EN 574 TYP III A, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Terminal type:: | Screw terminal |
Terminal style:: | Plug-in |
Number of instantaneous safety outputs:: | 2 ST |
Number of test pulse outputs:: | 2 |
Stop category:: | 0 |
Width dimension:: | 22.5 mm |
Height dimension:: | 94.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 145 g |
Net weight:: | 130 g |
Ambient temperature:: | -10 - 55 °C |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
