Produkt
Pilz
751185
PNOZ s5 C 24VDC 2 n/o 2 n/o t coated
Poproś o ofertę
Prawa autorskie do obrazu: Pilz

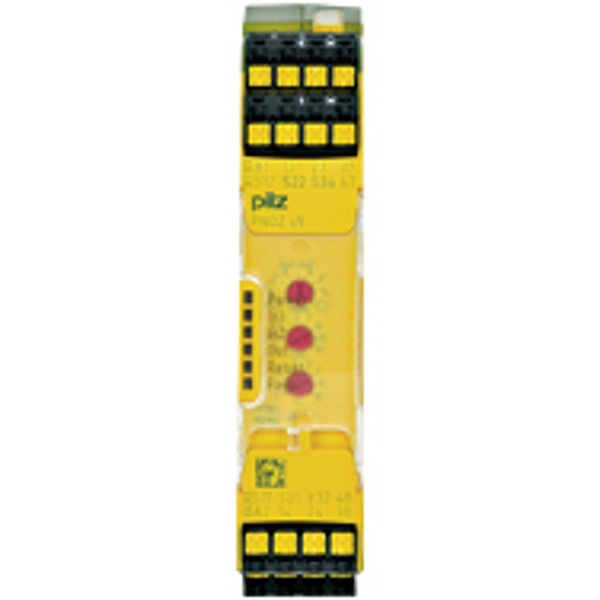

Pilz 751185
PNOZ s5 C 24VDC 2 n/o 2 n/o t coated
PNOZsigma Safety relay (standalone). Inputs: 1-/2-channel wiring with/, without detection of shorts across contacts. Outputs: 2 N/O, 2 N/O, t = 0 - 300s) 1 semiconductor UB 24 V DC, width: 22.5 mm, plug-in, spring-loaded terminals. Monitoring E-STOP, safety gates. Varnished version.
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC |
| Application options:: | Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 2 with t/p, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 4, Safety gate monitor, Safe delay-on de-energ. timer, Delayed E-STOP monitoring |
| Operating modes:: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test, Prog. delay-on de-energisation |
| Product standard:: | EN 60947-5-1 |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | Plug-in |
| Terminal type:: | Spring-loaded terminal |
| Number of instantaneous safety contacts:: | 2 |
| Number of delayed safety contacts:: | 2 |
| Number of auxiliary contacts:: | 0 |
| Number of semiconductor outputs:: | 1 |
| Selectable times:: | 0,04 s, 0,10 s, 0,20 s, 0,30 s, 0,40 s, 0,50 s, 0,60 s, 0,70 s, 0,80 s, 1,00 s, 1,50 s, 10,00 s, 100,00 s, 12,00 s, 120,00 s, 14,00 s, 140,00 s, 15,00 s, 150,00 s, 16,00 s, 160,00 s, 180,00 s, 2,00 s, 2,50 s, 20,00 s, 200,00 s, 210,00 s, 240,00 s, 25,00 s, 3,00 s, 3,50 s, 30,00 s, 300,00 s, 35,00 s, 4,00 s, 40,00 s, 5,00 s, 50,00 s, 6,00 s, 60,00 s, 7,00 s, 70,00 s, 8,00 s, 80,00 s, 90,00 s |
| Stop category:: | 0/1 |
| Max. current at DC13 I (6 cycles/min):: | 4.0 A |
| Max. current at AC15:: | 3.0 A |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 100.0 mm |
| Depth dimension:: | 120.0 mm |
| Gross weight:: | 245 g |
| Net weight:: | 235 g |
| Ambient temperature:: | -10 - 55 °C |
