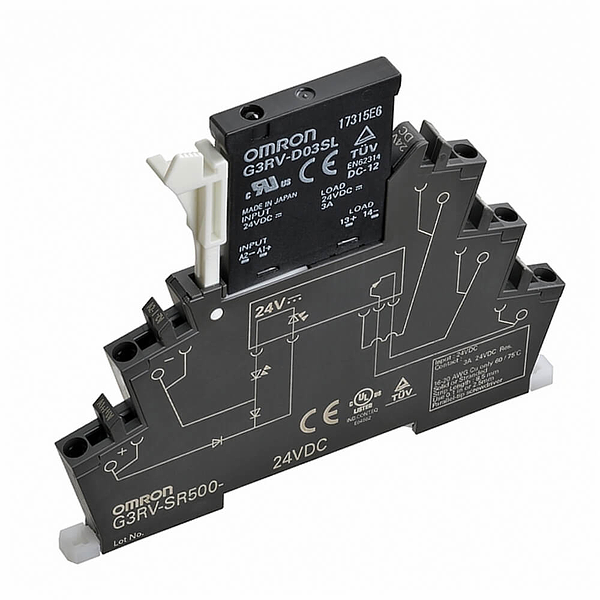

Omron G3RV5022M
G3RV-SR500-AL 24VAC/DC
Slimline SSR 6mm, incl. socket, AC output TRIAC, 2A, Push-in terminals, 24V AC/DC, Non Zero-cross
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Application: | Interface |
| Number of phases: | 1 |
| Mounting method: | DIN rail |
| Terminal: | Push-in |
| Complete with socket: | |
| With LED indicator: | |
| Rated operational voltage, AC: | 100-240 V |
| Operating voltage range, AC: | 75-264 V |
| Rated operation current Ie at AC-1: | 2 A |
| Height: | 88.871 mm |
| Width: | 6.2 mm |
| Depth: | 78.925 mm |
| Supply voltage DC: | 19.2-26.4 V |
| Supply voltage AC: | 19.2-26.4 V |
| Control current max.: | 12 mA |
| Must operate voltage max.: | 21.6 V |
| Must release voltage min.: | 1 V |
| Maximum operating temperature: | 55 °C |
| Minimum operating temperature: | -30 °C |
| Isolation: | Phototriac |
| Switching at zero-crossing: |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | JPN |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
