Produkt
Omron
G3PJ2111R
G3PJ-515B-PU DC12-24
Poproś o ofertę
Prawa autorskie do obrazu: Omron

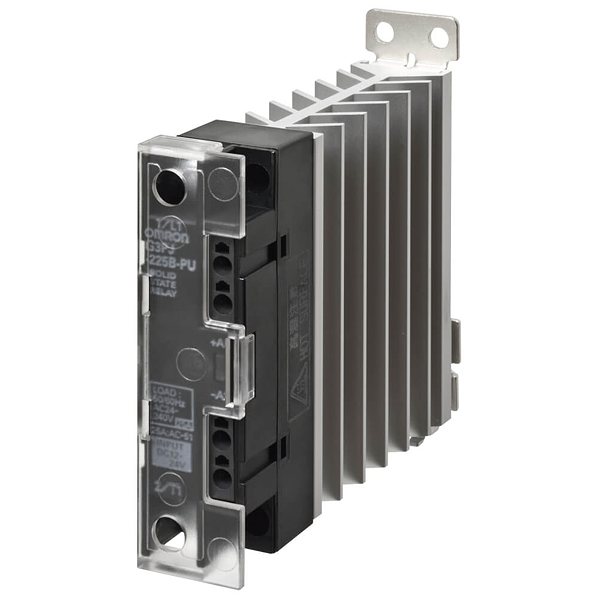

Omron G3PJ2111R
G3PJ-515B-PU DC12-24
Solid-state relay, 1 phase, 23A, 100-480V AC, with heat sink, DIN rail mount, input voltage 12-24V DC with Push-in terminals
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Application: | Power control |
| Number of phases: | 1 |
| Number of poles: | 1 |
| Mounting method: | DIN rail/screw |
| Terminal: | Push-in, Screw |
| Complete with socket: | |
| With LED indicator: | |
| Rated operational voltage, AC: | 100-480 V |
| Operating voltage range, AC: | 75-528 V |
| Rated operation current Ie at AC-1: | 23 A |
| Rated load current Close mounting: | 15 A |
| Permissible I²t value: | 1350 A²s |
| Height: | 100 mm |
| Width: | 22.5 mm |
| Depth: | 100 mm |
| Supply voltage DC: | 12-24 V |
| Control current max.: | 7 mA |
| Must operate voltage max.: | 9.6 V |
| Must release voltage min.: | 1 V |
| Maximum operating temperature: | 80 °C |
| Minimum operating temperature: | -30 °C |
| Isolation: | Phototriac |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | JPN |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
