Produkt
Omron
G3PE2037D
G3PE-215B-3N 12-24VDC
Poproś o ofertę
Prawa autorskie do obrazu: Omron

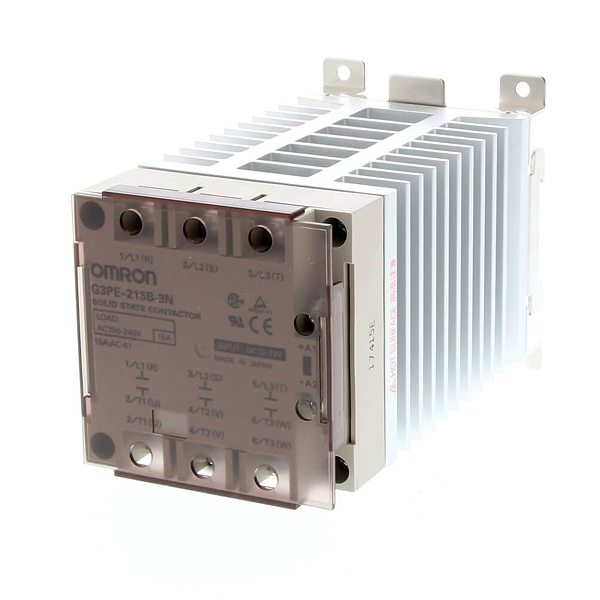

Omron G3PE2037D
G3PE-215B-3N 12-24VDC
Solid-State relay, 3-pole, DIN-track mounting, 15 A, 264 VAC max
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Application: | ON/OFF control |
| Number of phases: | 3 |
| Number of poles: | 3 |
| Mounting method: | DIN rail/screw |
| Terminal: | Screw |
| Complete with socket: | |
| With LED indicator: | |
| Rated operational voltage, AC: | 100-240 V |
| Operating voltage range, AC: | 75-264 V |
| Rated operation current Ie at AC-1: | 15 A |
| Permissible I²t value: | 121 A²s |
| Applicable heater capacity (AC1: resistive load): | 5.1 kW |
| Height: | 100 mm |
| Width: | 80 mm |
| Depth: | 155 mm |
| Supply voltage DC: | 12-24 V |
| Control current max.: | 10 mA |
| Must operate voltage max.: | 9.6 V |
| Must release voltage min.: | 1 V |
| Maximum operating temperature: | 80 °C |
| Minimum operating temperature: | -30 °C |
| Isolation: | Phototriac |
| Switching at zero-crossing: |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | JPN |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
