50134931
MK 338

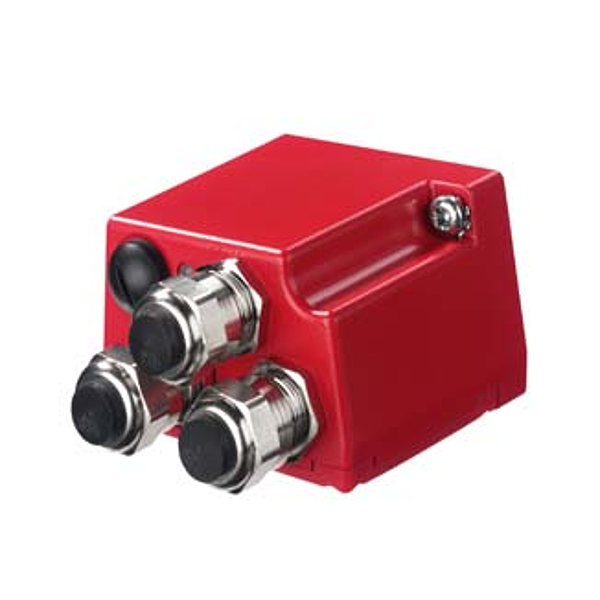

MK 338 - Connection unit
Suitable for: | BCL 338i, BPS 338i |
Suitable for interface: | EtherCAT |
Number of connections: | 4 Piece(s) |
Function: | PWR / SW IN / OUT |
Type of connection: | Terminal |
Function: | Service interface |
Type of connection: | Terminal |
Function: | BUS OUT, HOST / BUS IN |
Type of connection: | Terminal |
Function: | Service interface, BUS OUT |
Type of connection: | USB |
Design: | Cubic |
Dimension (W x H x L): | 64 mm x 83.5 mm x 43.5 mm |
Housing material: | Plastic, Diecast aluminum, Metal |
Net weight: | 186 g |
Housing color: | Red |
Type of display: | LED |
Number of LEDs: | 2 Piece(s) |
Customs tariff number: | 84733080 |
eCl@ss 8.0: | 27279290 |
eCl@ss 9.0: | 27279090 |
ETIM 5.0: | EC002498 |
ETIM 6.0: | EC002498 |
ECCN: | |
Kraj pochodzenia: | Deutschland |
EAN: | |
Waga: | 0,27 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
