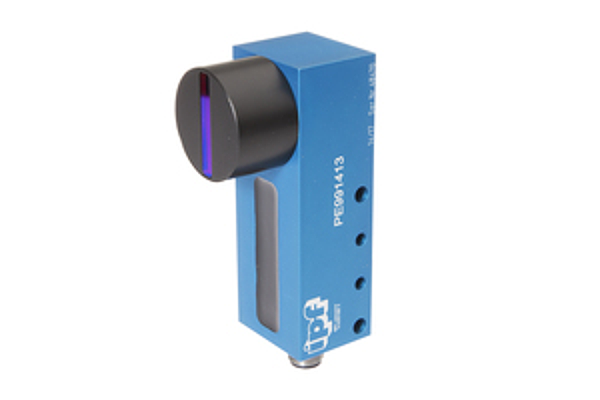

IPF PE991413
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Version: | Through-beam sensor receiver |
| Housing material: | Aluminum |
| Material of optical surface: | Glass |
| Sensor width: | 34mm |
| Sensor length: | 50mm |
| Design: | Cuboid |
| Ambient temperature: | -20 - 50°C |
| Degree of protection (IP): | IP65 |
| Sensor height: | 94mm |
| Voltage type: | DC |
| Type of input voltage: | DC |
| Type of analog output: | 0 V ... 10 V |
| Type of switching output: | PNP/NPN |
| Operating voltage: | 12 - 32V |
| No-load current: | 30mA |
| Relative repeat accuracy: | 15µm |
| Short-circuit protection: | yes |
| Rated switching distance: | 5000mm |
| Connection to amplifier: | no |
| Measurement frequency: | 300Hz |
| Number of pins: | 4 |
| Switching frequency: | 25000Hz |
| Type of electrical connection: | Connector M12 |
| Type of switching function: | Push-pull |
| Setting procedure: | Manual adjustment |
| Measuring range: | 5m |
| Rated switching current: | 100mA |
| Scanning function: | Light-/dark-on mode |
| Reverse polarity protection: | yes |
| No-load current, receiver: | 30mA |
| Scope of delivery of the one-way system: | Receiver |
| Light source: | Laser diode, red light |
| Resolution: | 150µm |
| Filter: | Interference / polarizing filter |
| Aperture width: | 0.5mm |
| Wavelength of the sensor: | 670nm |
| Light beam form: | Line |
| Aperture length: | 30mm |
| eClass 7.0: | 27270901 |
| eClass 7.1: | 27270901 |
| eClass 8.0: | 27270901 |
| eClass 9.0: | 27270901 |
| eClass 9.1: | 27270901 |
| ETIM-6.0: | EC002716 |
| ETIM-7.0: | EC002716 |
| IPF Product Group: | 705 |
| shipping weight: | 0.31kg |
| packaging dimensions: | 99.0mm x 60mm x 160mm |
| customs tariff number: | 85365019 |
